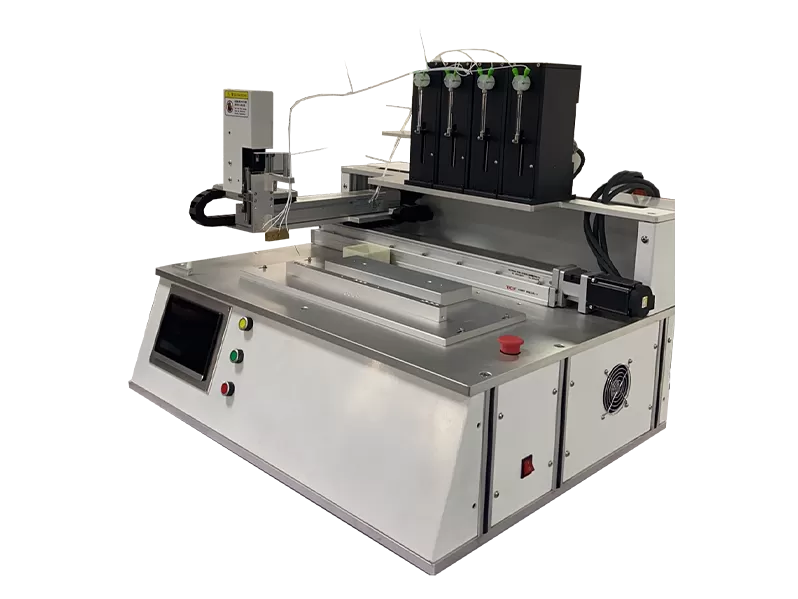

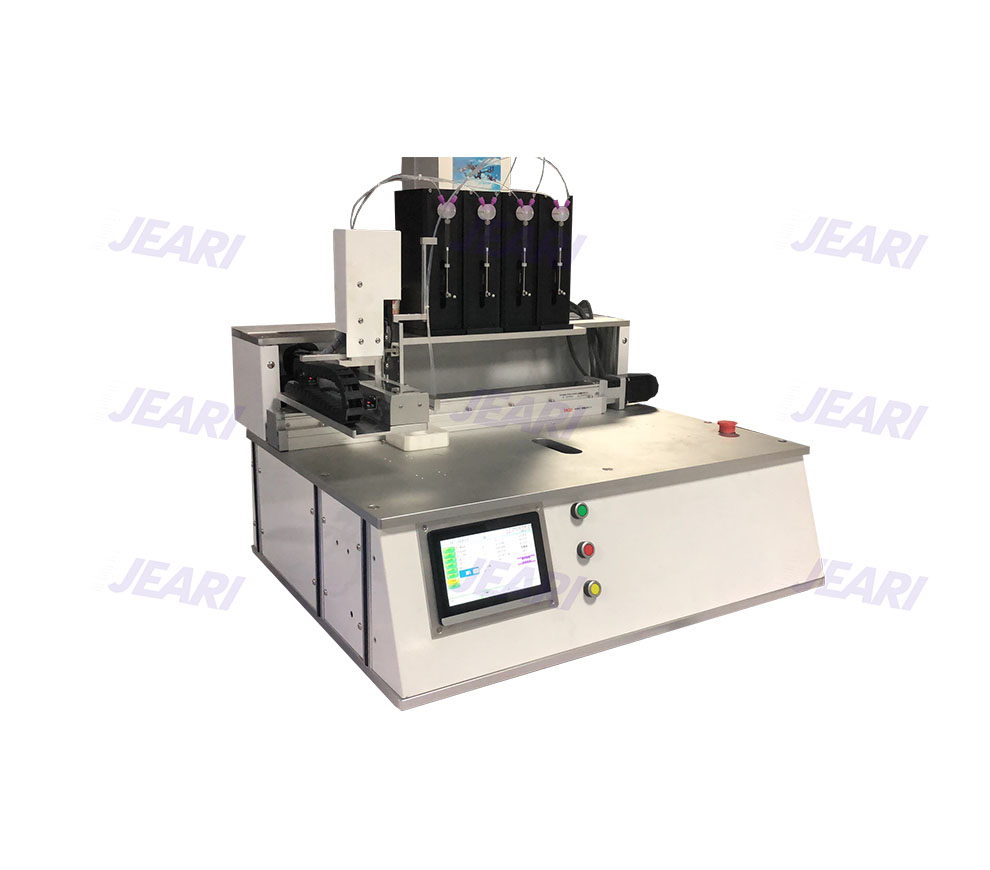

WM-402 Dry Chemical Multi-channel Liquid Dispensing Machine

Scope of Application:

Designed for dry chemistry test strip membrane spotting processes.

Optimize Your Production Precision

WM-402 Dry Chemical Multi-channel Liquid Dispensing Machine Specifications

ModelWM-402
Coordinate Error±0.02mm
Accuracy of Sampling Full Stroke<2%
Precision of Sampling Full Stroke≤1%
Specification Of SyringeBetween 50μL and 50mL
Standard Dispensing /Aspiration Accuracy6000 dot values
Micro-step Dispensing /Aspiration Accuracy18000 dot values
Dispensing Volume500nL-10μL
Number of Channels5 channels
Dispensing Speed2-7 times/second (The speed will vary according to the pumps and valves)
Coordinate Movement SpeedMax 15 meters/minute
Machine Size760mm×550mm×600mm,Size wil be vary according to different product
Electric Power ConsumeAbout 1.7KW
Electric PowerAC220V/50,60HZ
Machine WeightAbout 85KG


WM-402 Dry Chemical Multi-channel Liquid Dispensing Machine Workflow

Add solution
Add solution
Manually place substrate card
Manually place substrate card
Spotting
Spotting
Manual unloading
Manual unloading
WM-402 Dry Chemical Multi-channel Liquid Dispensing Machine Advantages

WM-402 Dry Chemical Multi-channel Liquid Dispensing Machine Advantages

• The system can be customized with a sealed external cover, equipped with temperature, humidity, and lighting control to ensure a stable and optimal production environment.

• The number of dispensing channels can be expanded as needed, and a low-temperature reagent storage module can be integrated. The coordinate system includes an automatic needle-lifting function, allowing individual height settings for each dispensing position.

• Each channel can operate independently with different reagent volumes, supporting up to 5 distinct reagent types simultaneously. The channels are fully isolated to prevent cross-contamination during reagent handling.
