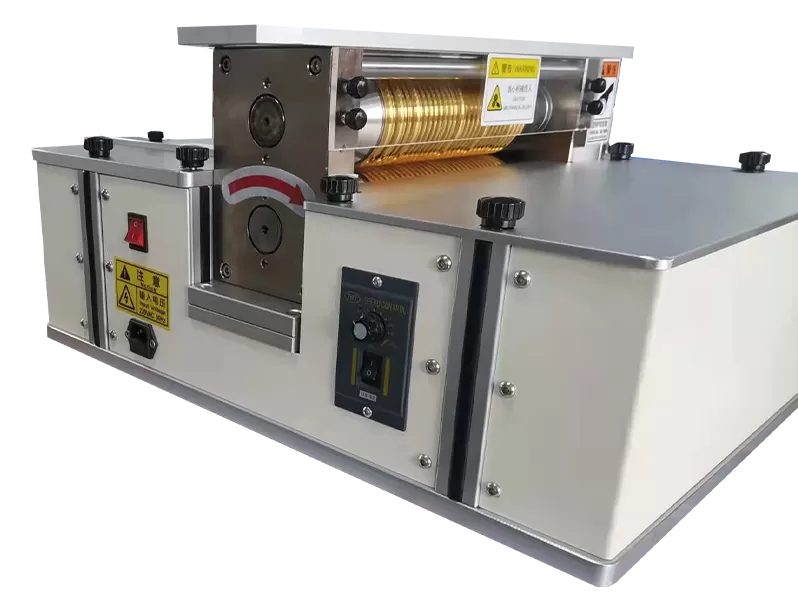

This equipment is a rotary cutting machine specifically developed for the production of dry chemistry type test strip membranes.
The equipment utilizes sheet-shaped raw materials and can cut various membrane materials such as PET and double-sided adhesive films. With customizable cutting tools capable of processing widths as narrow as 3 mm, it serves as an ideal auxiliary tool for manufacturing enterprises.
The tool employs Japanese-imported alloy blades, with the cutting edge angle meticulously designed during manufacturing to avoid direct contact with the material surface during rolling cutting, thereby preventing surface scratches. The tool exhibits excellent wear resistance and can undergo surface titanium treatment as per customer requirements for enhanced durability. When switching product types, only a single set of modular tools needs to be replaced—a highly convenient and efficient process.
Scope of Application:
Non-contact cutting production for dry chemical test strips.
| Model | WM-231 |
| Worktable Route | 60mm-200mm, 150mm-300mm (Can be customized according to size of product) |
| Cutting Precision | ±0.03mm (There may be slight fluctuations depending on the material used) |
| Suitable Thickness | Within 0.2mm |
| Type of Material | Sheet |
| Cutting Channels | Maximum 60 channels (can be customized according to needs) |
| Cutting Width | 3mm-20mm (Can be customized) |
| Rolling Efficiency | 210rpm/min (can be adjusted) |
| Programming | No need to edit the program |
| Machine Size | 760mm×630mm×520mm (The size may vary depending on the layout) |
| Machine Weight | About 75KG |
| Electric Power Consume | 0.3KW |
| Electric Power | AC220V/50, 60HZ |
The system is designed for sheet-form raw materials and supports cutting of different membrane types such as PET and double-sided adhesive films. Cutting tools can be customized for various widths, with a minimum cutting width of 3 mm, making it an ideal auxiliary device for manufacturers.
