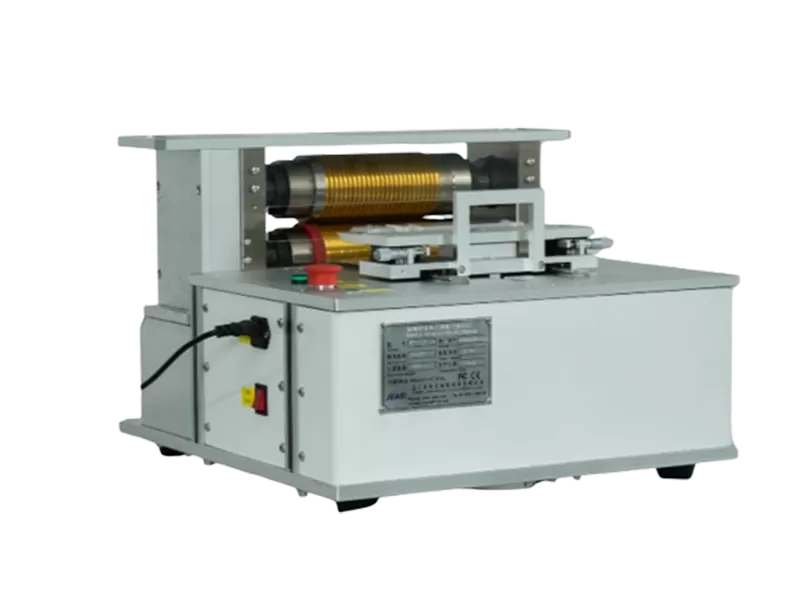

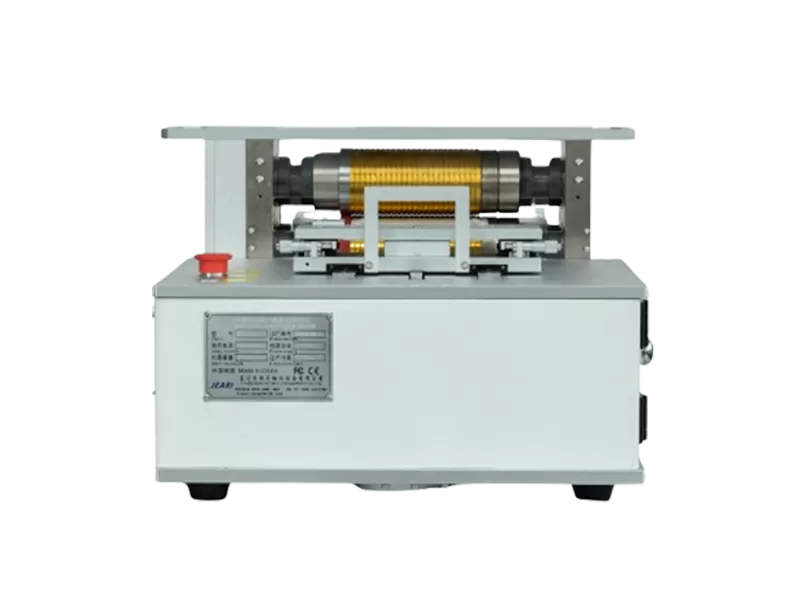

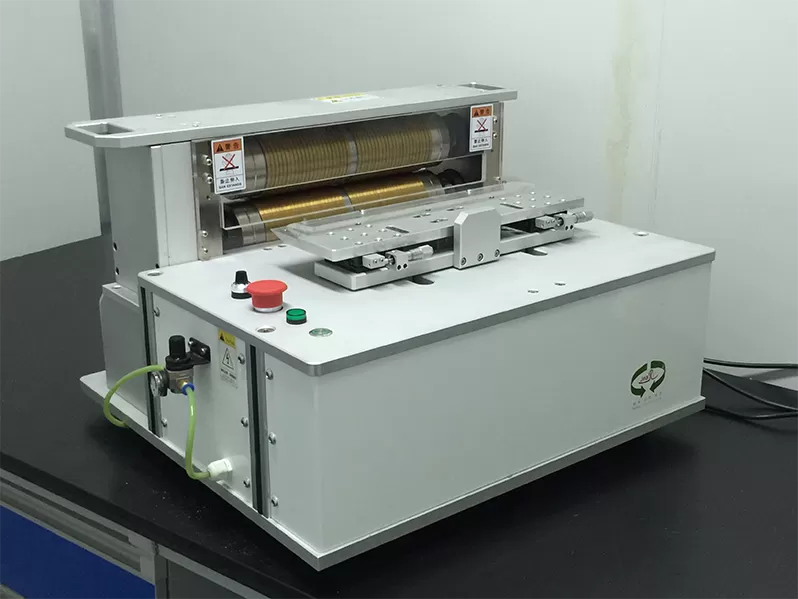

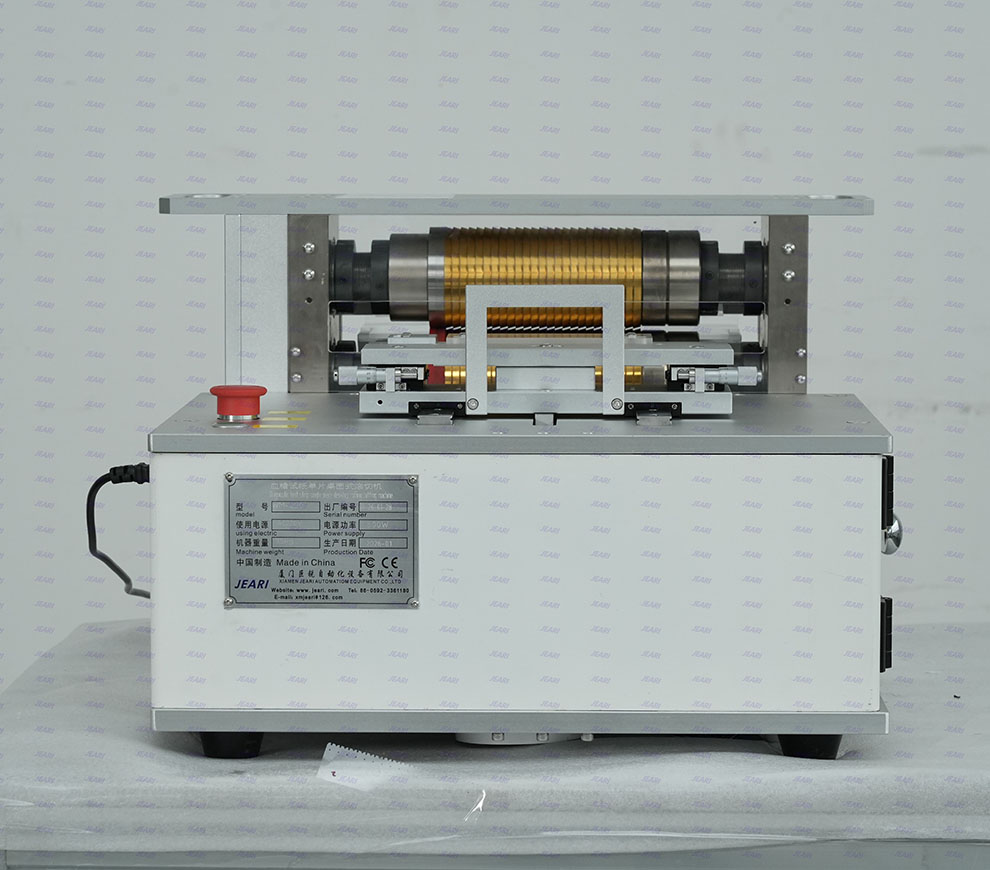

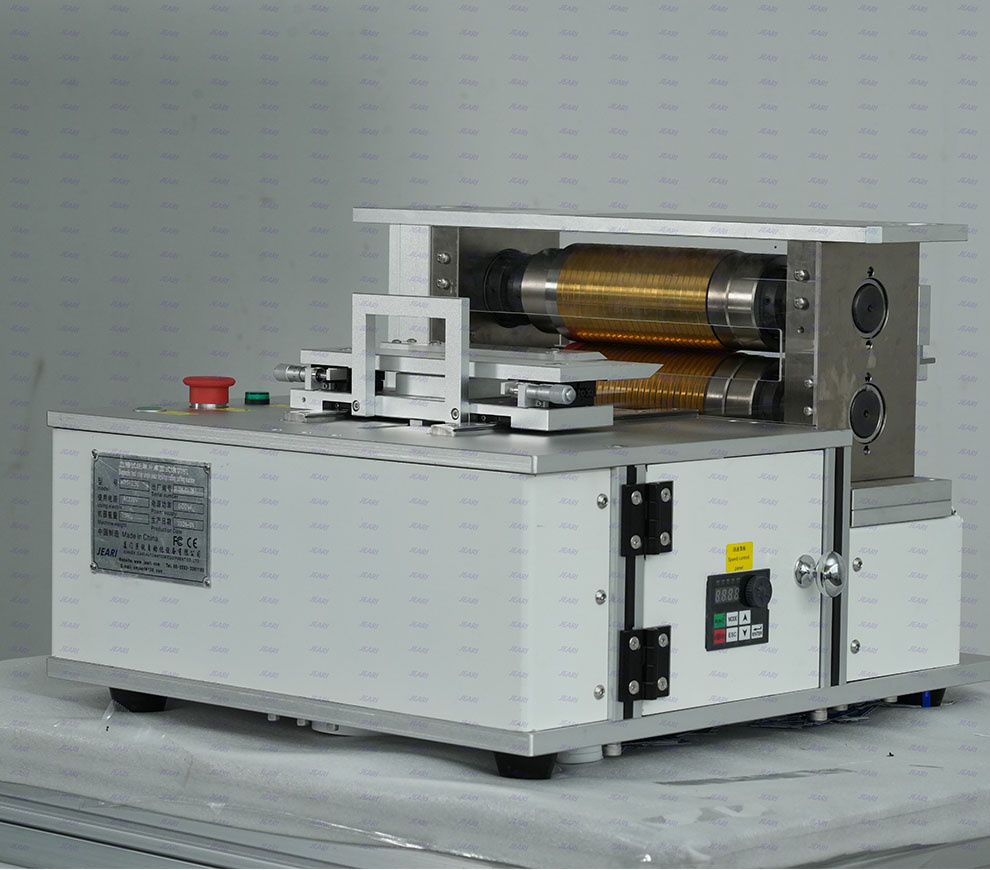

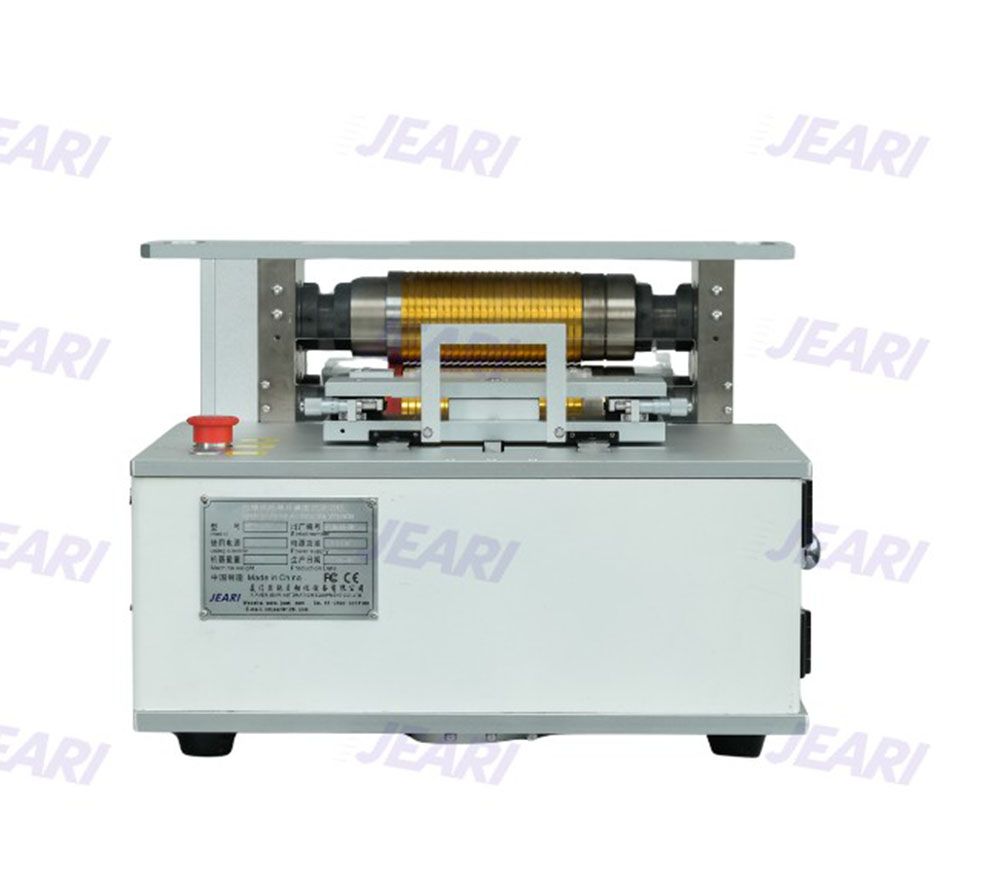

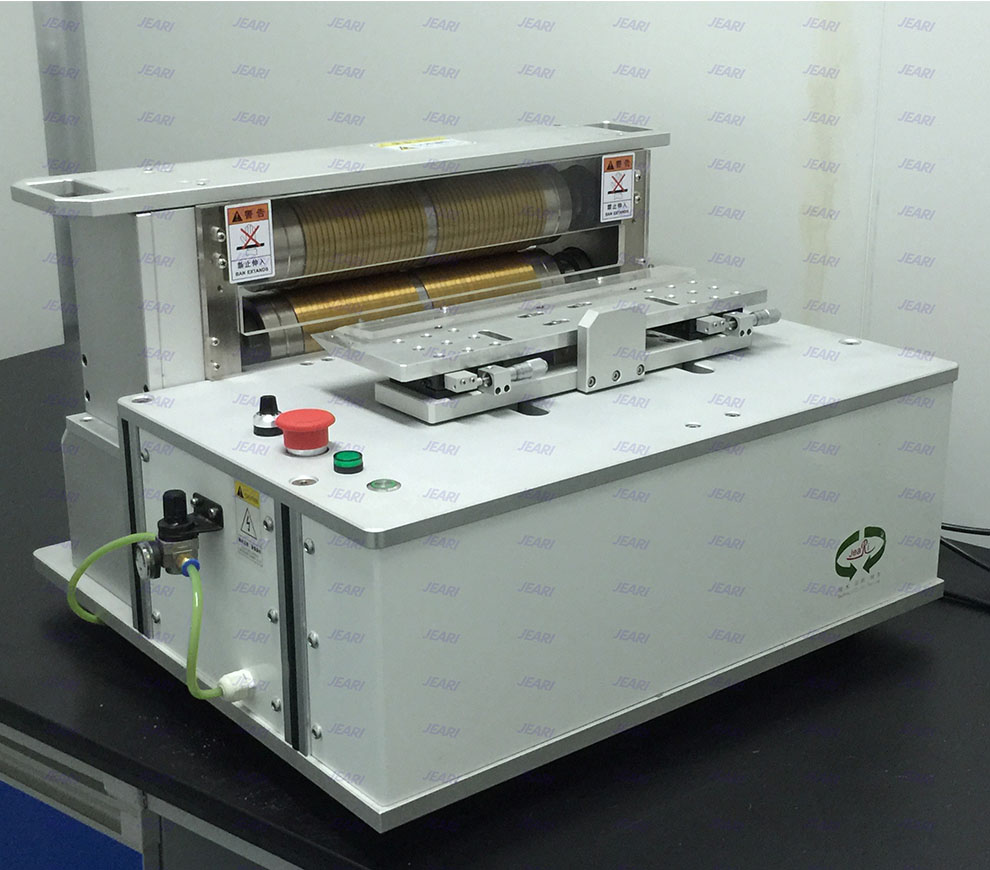

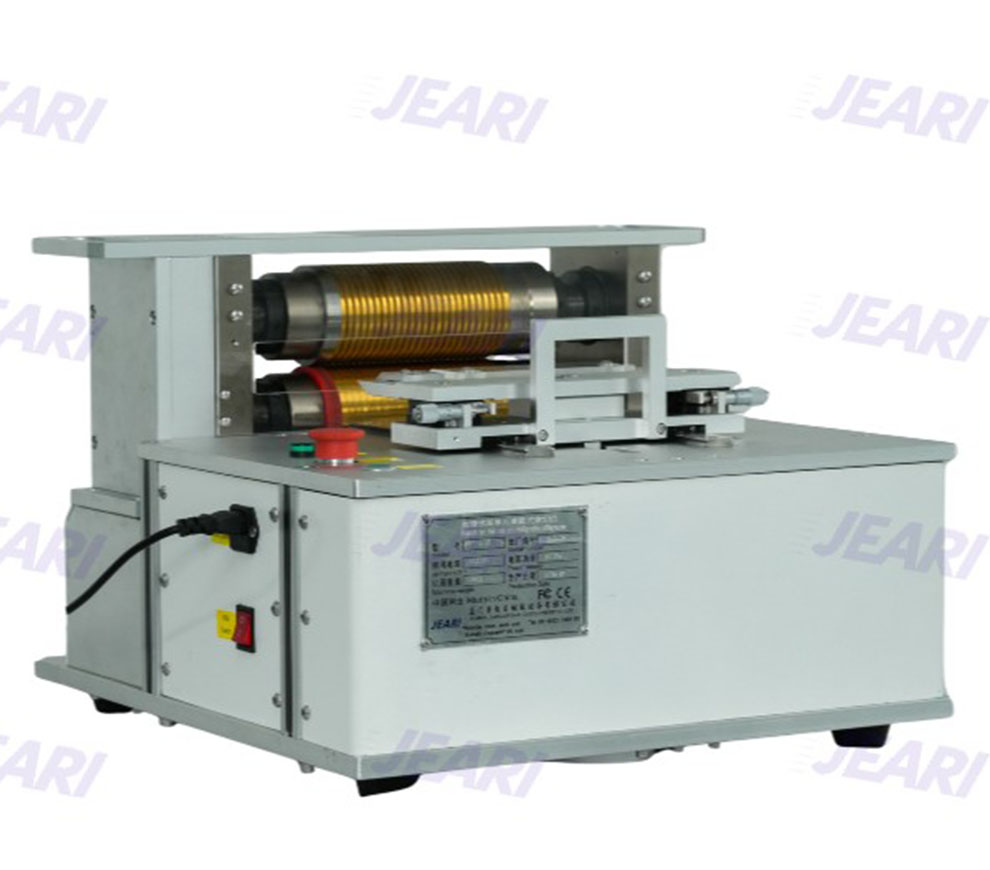

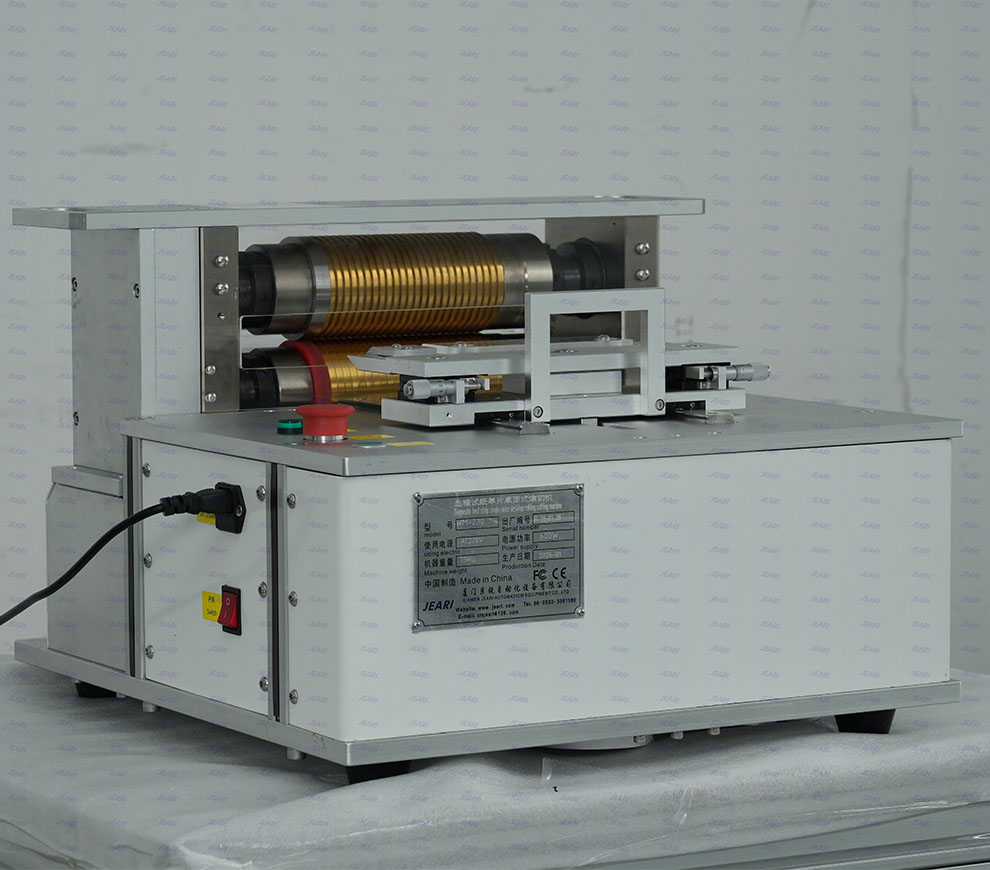

WM-230 Diagnosis Test Strip Single Piece Desktop Rolling Cutting Machine

Scope of Application:

Production of blood lipid and hemoglobin test strips.

Optimize Your Production Precision

WM-230 Diagnosis Test Strip Single Piece Desktop Rolling Cutting Machine Specifications

ModelWM-230
Worktable Route200mm-460mm (Can be customized according to size of product)
Cutting Precision±0.1mm (There may be slight fluctuations depending on the material used)
Suitable ThicknessWithin 1.5mm
Roll Cutting Alignment WayManual alignment
Static Electricity Removal & Dust Suction FunctionCan be added
Rolling Efficiency220rpm/min (can be adjusted)
ProgrammingNo need to edit program
Machine Size660mm×630mm×520mm (The size may vary depending on the layout)
Gas Source0.6Mpa (Clean gas source)
Machine WeightAbout 75KG
Electric Power Consume0.6KW
Electric PowerAC220V/50, 60HZ


WM-230 Diagnosis Test Strip Single Piece Desktop Rolling Cutting Machine Workflow

(Single-row sheet) Automatic feeding
(Single-row sheet) Automatic feeding
Roll cutting
Roll cutting
Product discharge
Product discharge
Automatic bottling
Automatic bottling
WM-230 Diagnosis Test Strip Single Piece Desktop Rolling Cutting Machine Advantages

WM-230 Diagnosis Test Strip Single Piece Desktop Rolling Cutting Machine Advantages

  • During cutting of multilayer membrane test strips, the process features non-contact operation with no pre-pressing, ensuring that the cutting blades do not damage the membrane surface. The blade edge angle is precisely designed to produce smooth cutting surfaces without causing membrane edge breakage or deformation. Optional titanium surface treatment can be applied for enhanced durability and extended tool life.
