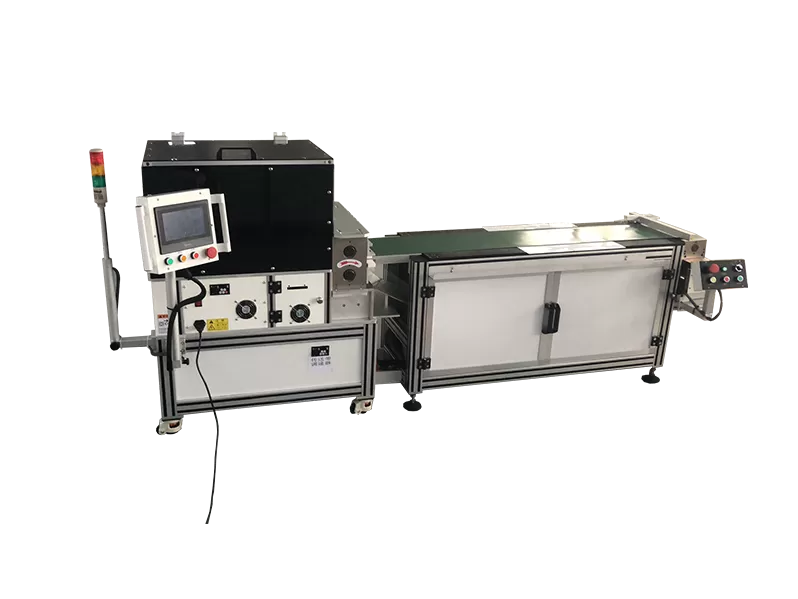

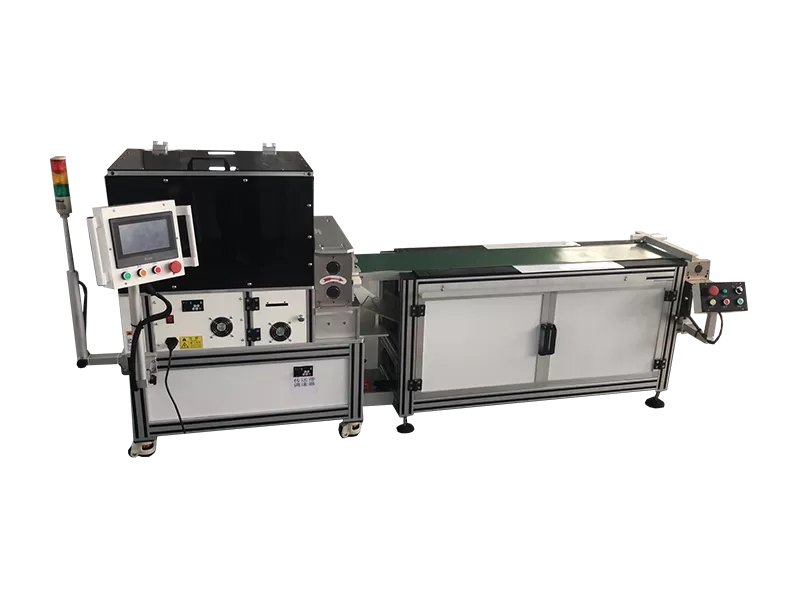

WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine
WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine

WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine

This equipment is a rotary cutting machine developed specifically for the single-sheet cutting production process of various urine test strips.

The equipment's material cutting station is constructed with light-resistant materials and equipped with a dust extraction mechanism for automatic material feeding and edge positioning. The material collection end utilizes a conveyor belt for material gathering. Characterized by high speed, superior efficiency, and consistent quality, this system serves as an ideal production equipment for manufacturing enterprises.


Scope of Application:

Single-strip cutting production for urine test strips.

Optimize Your Production Precision

WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine Specifications

ModelWM-604
Work Table Route300mm
Rolling Cutting PrecisionError ±0.05mm (There may be slight fluctuations depending on the material)
Silo Capacity200 sheets
Cutting ThicknessFlat surface within 0.15mm
Suitable Size60-130mm
Edge Material HandlingAutomatic removal of edge material
Rolling Cutting Alignment WayEdge positioning
Static Electricity Removal and Dust Suction FunctionCan be added (optional)
Rolling EfficiencyStandard: 210rpm/min, speed can be adjusted
Gas Source0.6Mpa (Clean gas source)
Machine Size960mm*600mm*1200mm,Size wil be vary according to different product
Electric Power ConsumeAbout 1.4KW
Electric PowerAC220V/50,60HZ
Machine WeightAbout 180KG


WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine Workflow

Automatic feeding
Automatic feeding
Alignment
Alignment
Roll cutting
Roll cutting
Manual bottling
Manual bottling

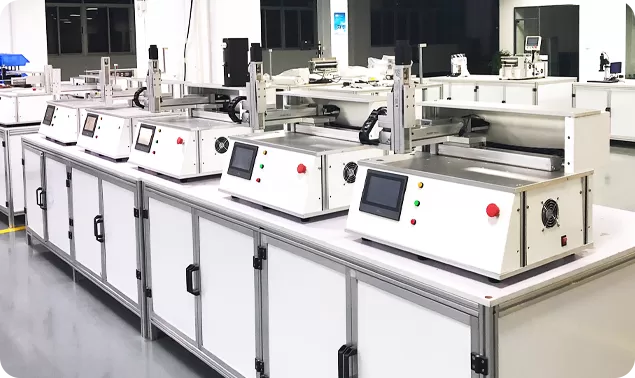

WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine Advantages

WM-604 Urine Test Strip Semi-Automatic Rolling and Cutting Machine Advantages

• The cutting chamber is made of light-shielding material and equipped with a dust extraction system. The system performs automatic material feeding and edge alignment, while the discharge section uses a conveyor belt for collection. It provides high speed, efficiency, and stable quality—an ideal production device for test strip manufacturers.

• The cutting blades are made of Japanese HSS high-speed alloy steel, offering excellent wear resistance and long service life. Optional titanium coating is available upon customer request for enhanced durability.
