Scope of Application:
For production of products requiring reagent spraying or droplet dispensing, such as biochips, biosensors, and enzyme spotting applications.

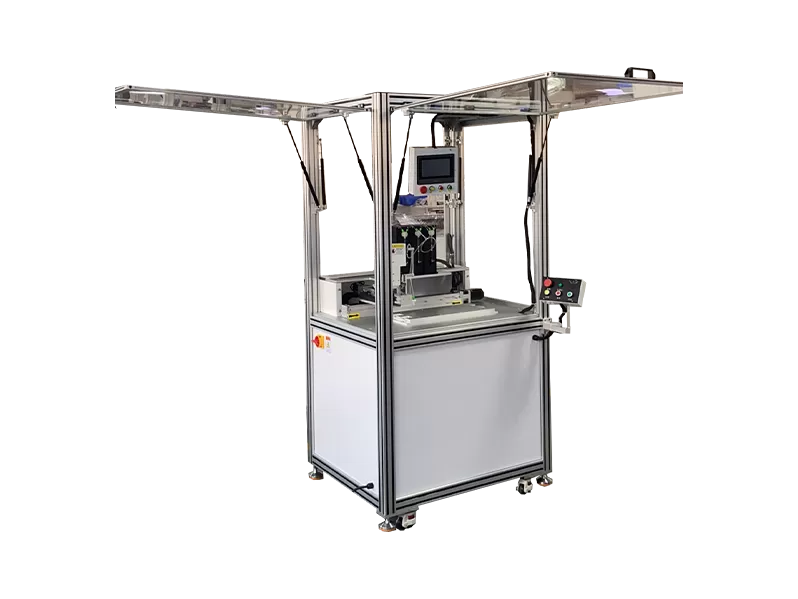

| Model | WM-401-LS |
| Coordinate Error | ±0.02mm |
| Accuracy of Sampling Full Stroke | <2% |
| Precision of Sampling Full Stroke | ≤3% |
| Number of Channels | 1-5 channels |
| Specification Of Syringe | Between 10μL and 100mL |
| Dispensing Volume | 500nL-5μL |
| Dispensing Speed | Max3-5 times per second |
| Atomization Area | 2mm-12mm （Can be customized according to requirements） |
| CCD Detection | Can be added (optional) |
| Machine Size | 960mm×960mm×1950mm，Size wil be vary according to different product |
| Electric Power Consume | About 1.7KW |
| Electric Power | AC220V/50,60HZ |
| Gas Source | 0.6-0.8Mpa (optional) |
| Machine Weight | About 160KG |
The equipment can be customized with an external sealed enclosure and equipped with temperature and humidity control instruments to ensure a stable production environment.
It features an independent XYZ three-axis system, allowing customized linear, circular, or array-type spraying patterns based on product specifications.
