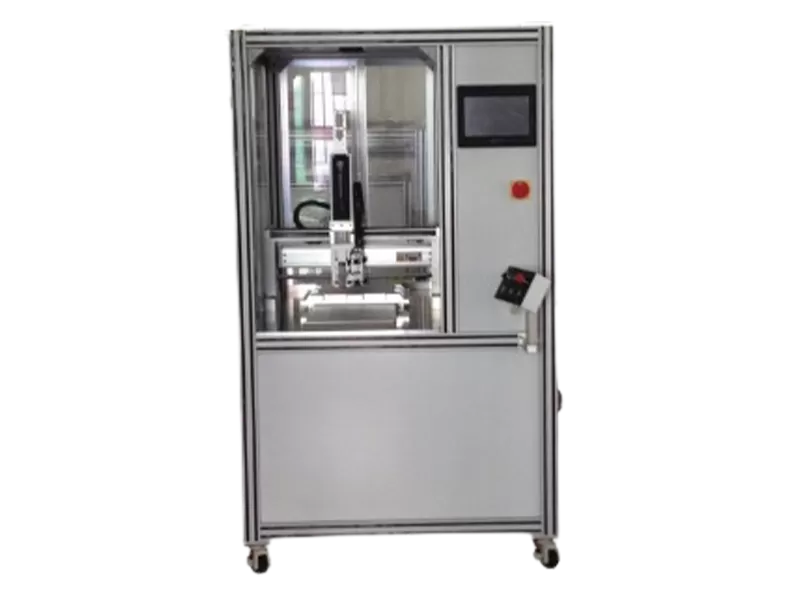

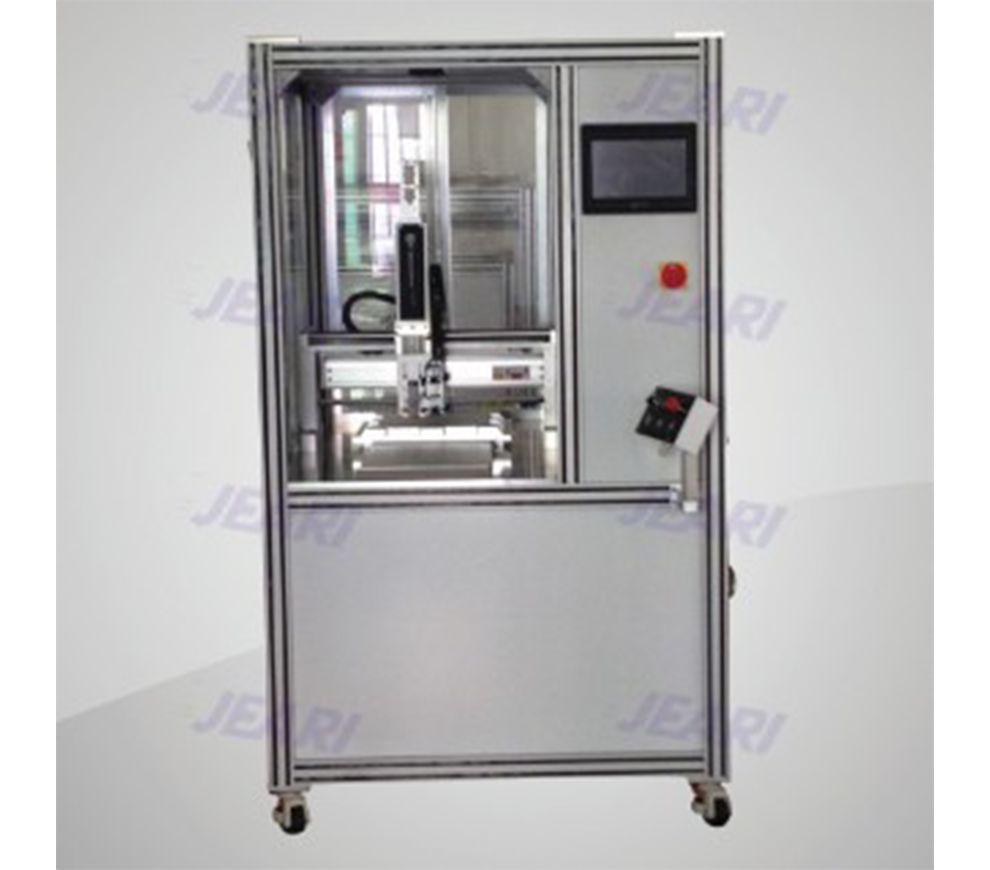

WM-401LZ-PS Vertical Automatic Multi-channel PCR Dispensing Machine

Scope of Application:

Developed for PCR product manufacturers, this equipment offers a significant advantage for reagent dispensing processes involving more than 25 channels.


Optimize Your Production Precision

WM-401LZ-PS Vertical Automatic Multi-channel PCR Dispensing Machine Specifications

ModelWM-401LZ-PS
Coordinate Error±0.02mm
Accuracy of Sampling Full Stroke<2%
Precision of Sampling Full Stroke≤1%
Specification Of SyringeBetween 50μL and 50mL
Standard Dispensing /Aspiration Accuracy6000 dot values
Micro-step Dispensing /Aspiration Accuracy18000 dot values
Dispensing Volume200nL-1μL
Number of ChannelsMax 32 channels
Dispensing Speed2-100times/second
CCD DetectionCan be added (optional)
Machine Size1360mm×1060mm×1950mm,Size wil be vary according to different product
Electric Power ConsumeAbout 2.7KW
Electric PowerAC220V/50,60HZ
Gas Source0.6-0.8Mpa (optional)
Machine WeightAbout 280KG


WM-401LZ-PS Vertical Automatic Multi-channel PCR Dispensing Machine Workflow

Add solution
Add solution
Manually place substrate card
Manually place substrate card
Spotting
Spotting
Manual unloading
Manual unloading
WM-401LZ-PS Vertical Automatic Multi-channel PCR Dispensing Machine Advantages

WM-401LZ-PS Vertical Automatic Multi-channel PCR Dispensing Machine Advantages

  • The system can be customized with an external sealed protective enclosure, and equipped with temperature and humidity control instruments to maintain optimal environmental conditions for product manufacturing.

  • Each channel can be independently configured with different parameters and dosing volumes. The system supports up to 32 fully independent reagent channels, ensuring complete sample isolation to prevent any risk of cross-contamination.
