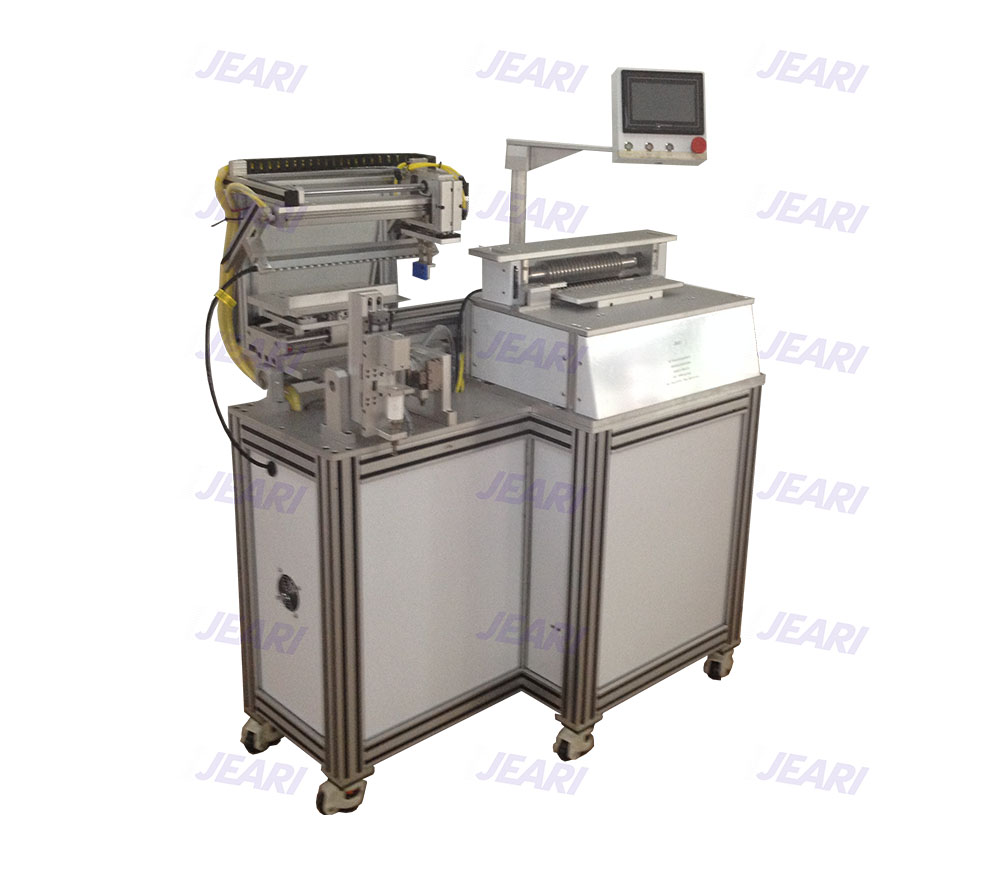

This high-precision roller-cutting machine is specifically developed for the semi-automatic cutting and bottling of blood glucose test strips.
The equipment is optionally equipped with various positioning methods such as optical fiber sensing, hole positioning, and edge positioning, ensuring precise alignment and automatic equipment calibration. Characterized by high speed, superior efficiency, and stable quality, it serves as an ideal production equipment for manufacturing enterprises.
The equipment is equipped with an automatic bottling mechanism; when the operator presses the bottling button, the machine automatically completes the bottling process. It can be integrated with a CCD vision inspection system to verify the cutting quality and quantity of finished products. When switching production product types, only a set of modular cutting tools needs to be replaced, ensuring high efficiency and convenience.
Scope of Application:
Production of blood glucose test strips
| Model | WM-220-LS |
| Cutting Precision | Robotic arm with vision system: ±0.1mm tolerance within 300mm |
| Maximum Cutting Width | 25-40mm (Can be customized according to needs) |
| Qty of Roll Channel | 4-12 channels (Customized according to needs) |
| Silo Capacity | About 300 sheets |
| CCD Inspection | Two sets of vision inspection systems cover the entire production process, with the capability to store images from each production run. |
| Impedance Detection | Customized according to needs |
| Receiving Materials Way | Fully automatic collection (labeled silo, defective product silo, finished product silo) |
| Programming | Touch screen interface input(and remote assistance) |
| Machine Size | 1200mm×900mm×1600mm (The size may vary depending on the layout) |
| Gas Source | 0.6Mpa (Clean gas source) |
| Machine Weight | About 190KG |
| Electric Power Consume | 3.2KW |
| Electric Power | AC220V/50, 60HZ |
Optional CCD vision system can be integrated for product inspection and quality monitoring.
Compatible with various electrochemical and dry-chemical test strips; cutting tools can be replaced according to specific production requirements.
Can be upgraded with an automatic feeding system to achieve higher automation levels.
