This high-precision die-cutting machine is specifically developed for manufacturers of blood glucose test strips with irregular shapes.
The device employs hole positioning, making it an ideal auxiliary production tool for manufacturing enterprises.
Molds can be manufactured in various shapes, capable of producing 25 to 50 pieces in a single molding process.

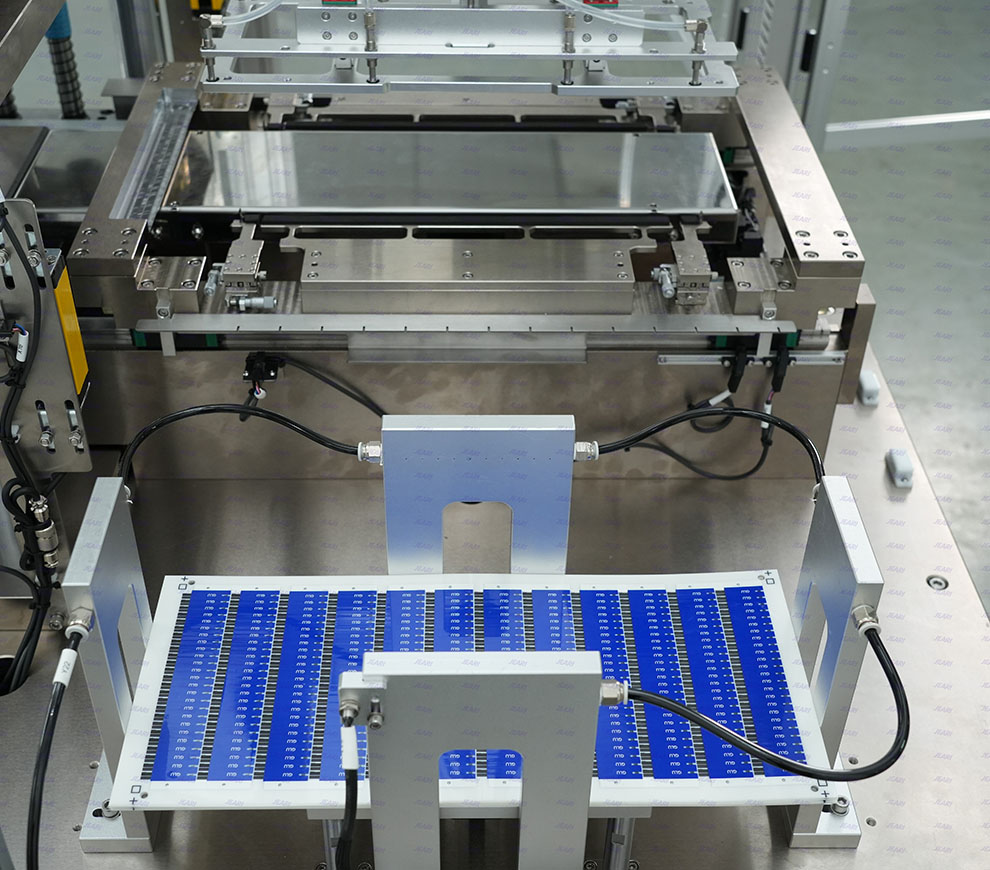

The equipment features automated loading and unloading, with automatic collection of waste material after die-cutting completion.
The device can be equipped with additional features such as CCD detection for automatic rejection of defective products and automatic counting for bottling.
Scope of Application:
Processing of irregular-shaped substrates for blood glucose test strips
| Model | WM-801 |
| Work Table Route | Dual station altemating type |
| Cutting Precision | ±0.1mm，There may be slight fluctuations depending on the material |
| Production Efficiency | 85-100 pieces/minute |
| Silo Capacity | 300 Single row |
| Printing Method | Laser printing or inkjet printing |
| Sealing Method | Hot pressing or utrasonic |
| Cutting Method | Cutting method |
| CCD Detection | Inspect finished cut products for dimensional accuracy, burrs, printed content, and packaging shape. |
| Aluminum Foil Requirements | Rolls of printed aluminum foil |
| Gas Source | 0.6-0.8Mpa (Clean gas source) |
| Machine Size | 3800mm*1100mm*1950mm |
| Electric Power Consume | 5.7KW |
| Electric Power | AC220V/50,60HZ |
| Machine Weight | About 2500KG |

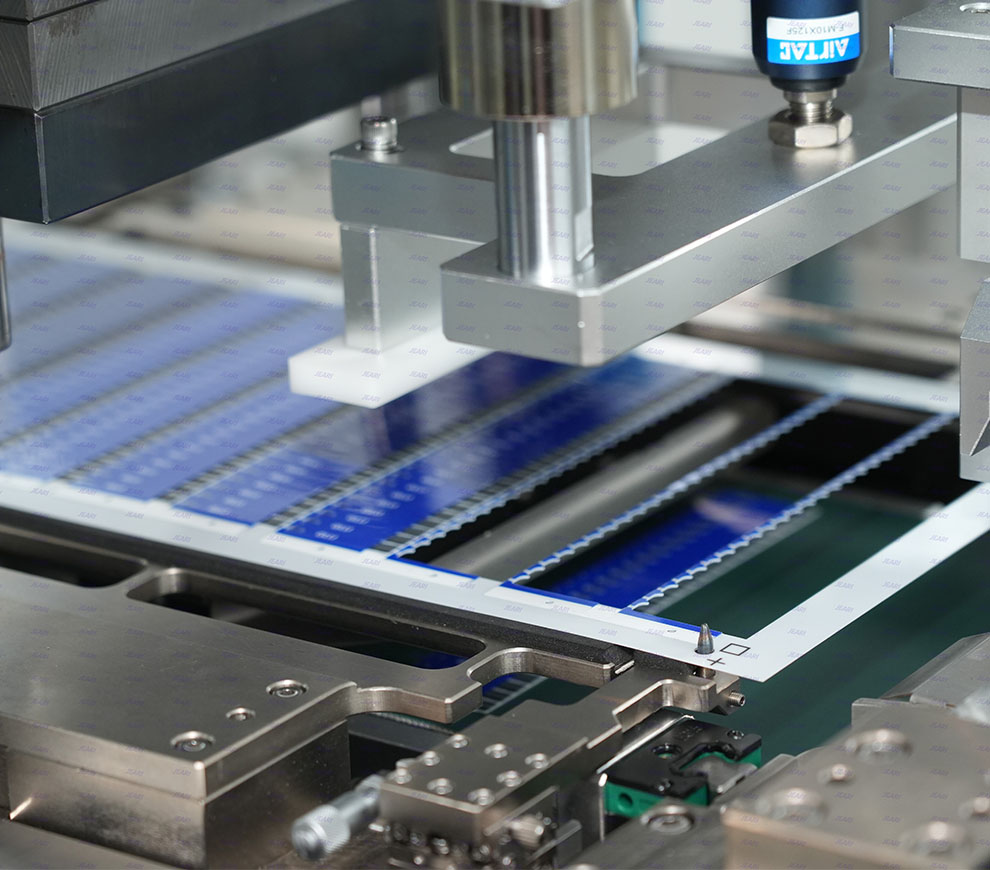

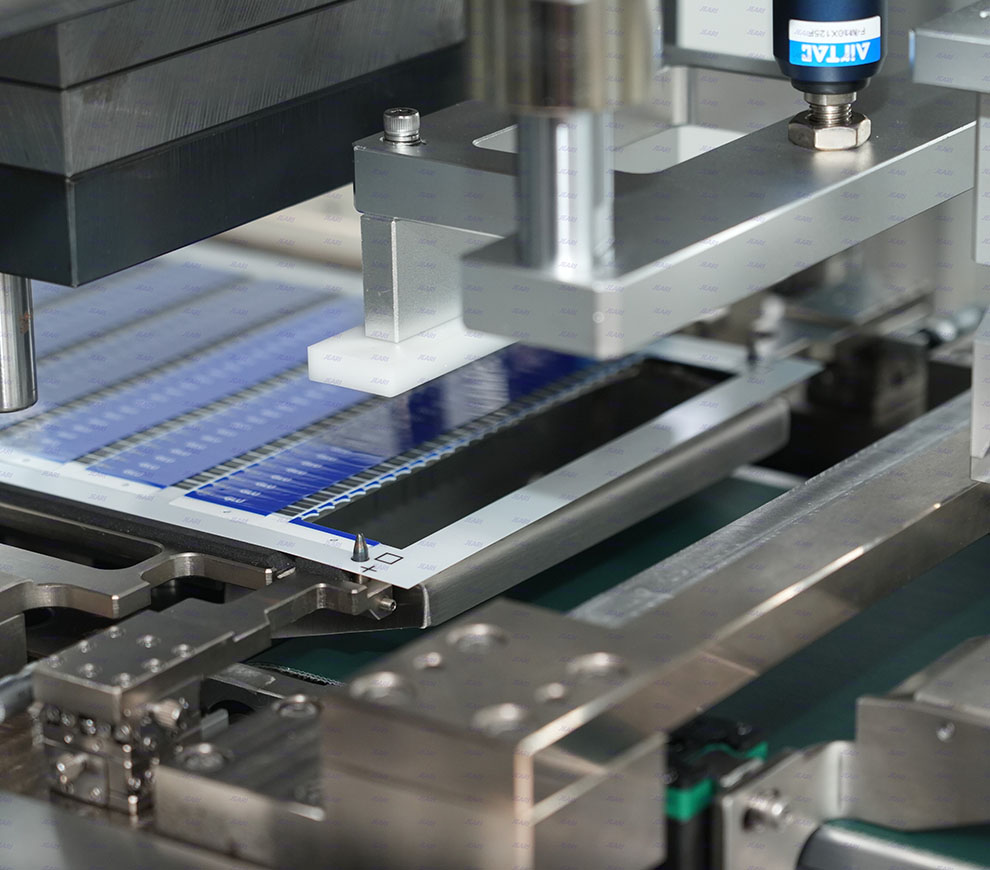

The device uses hole positioning technology to ensure precise cutting dimensions. Custom molds can be designed for different shapes, enabling one-time forming of 25–50 strips per cycle.
Optional configuration includes CCD vision inspection for automatic defective product removal and automatic counting and bottling functions, enhancing production accuracy and efficiency.
