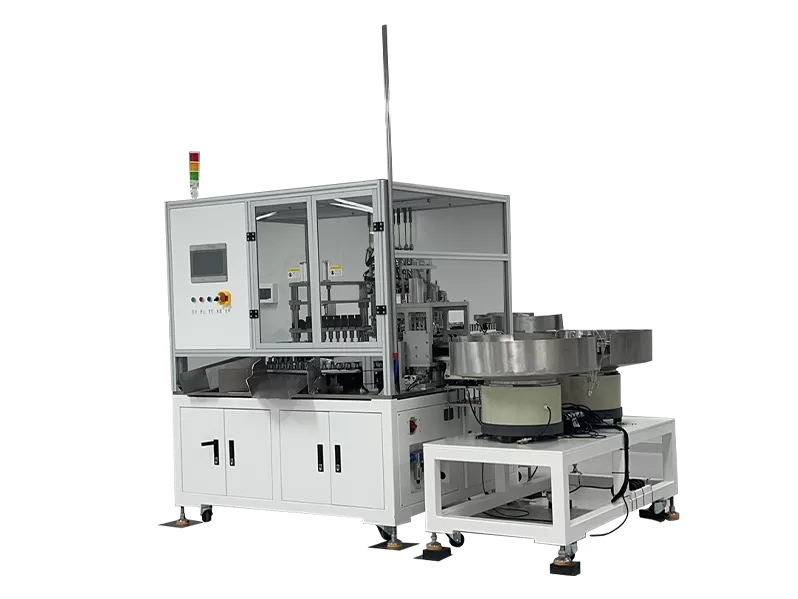

WM-703-8 Diagnostic Reagent Multi-channel High-Speedfilling and Capping Machine

Scope of Application:

Designed for diagnostic reagent filling and capping production.

Optimize Your Production Precision

WM-703-8 Diagnostic Reagent Multi-channel High-Speedfilling and Capping Machine Specifications

ModelWM-703-8
Filling Channels8 channels
Production Efficiency9000-10000 pieces/hour
Silo CapacityAbout 2000 bottles and caps
Flow AccuracyWithin 5% error (The error will vary according to the viscosity of the liquid to be filled)
Filling PumpPeristalic pump
Cap Torque8 Servo motor control with adjustable torque settings
CCD DetectionDetect liquid volume, detect foreign objects, verify cap placement, inspect overall bottle appearance
Defective Product HandlingAutomatic removal
ProgrammingTouch screen interface input
Gas Source0.6Mpa
Machine Size2200mm*2500mm*1950mm(Single)
Electric Power ConsumeAbout 3.7KW
Electric PowerAC220V/50,60HZ
Machine WeightAbout 1200KG





WM-703-8 Diagnostic Reagent Multi-channel High-Speedfilling and Capping Machine Workflow

Automatic loading
Automatic loading
Filling
Filling
Capping
Capping
Automatic defect inspection
Automatic defect inspection
Defective product removal
Defective product removal
Automatic unloading
Automatic unloading
Product discharge
Product discharge
WM-703-8 Diagnostic Reagent Multi-channel High-Speedfilling and Capping Machine Advantages

WM-703-8 Diagnostic Reagent Multi-channel High-Speedfilling and Capping Machine Advantages

• When switching between different bottle types, only the positioning fixture and capping mold need to be replaced. The system features eight independently controlled channels, with CCD vision inspection for monitoring filling and capping quality. Defective products are automatically detected and rejected.

• The equipment supports high-speed automated production, with a throughput exceeding 10,000 bottles per hour, ensuring consistent and efficient output.

Contact JEARI Experts for your Customized IVD Manufacturing Automation Solutions
Address:

1. Xiamen JEARI Automation Equipment Co., Ltd.

3rd Floor, No. 28, Xinglin North 2nd Road, Jimei District, Xiamen, Fujian, P.R.China


2. JEARI Intelligent Control Technology (Hangzhou) Co., Ltd.

No. 389 Hongxing Road, Xiaoshan Robot Town, Economic and Technological Development Zone, Xiaoshan District, Hangzhou, Zhejiang, P.R.China

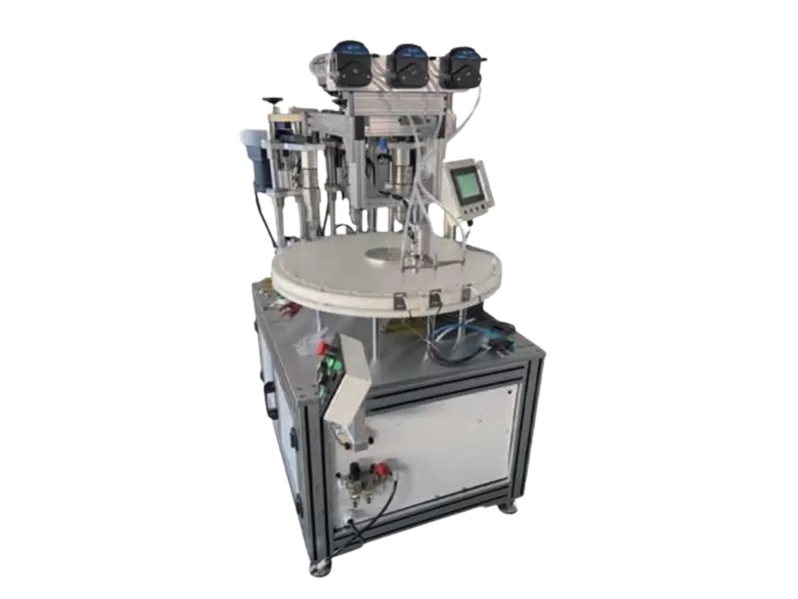

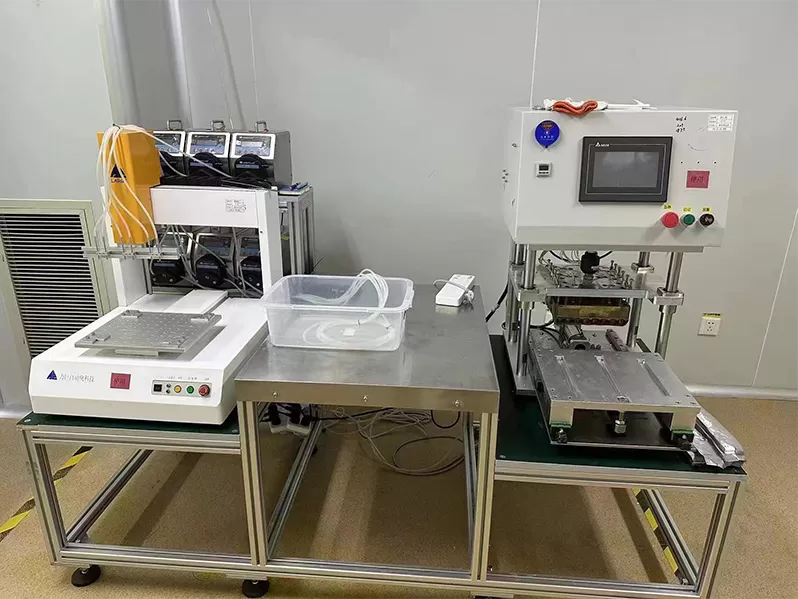

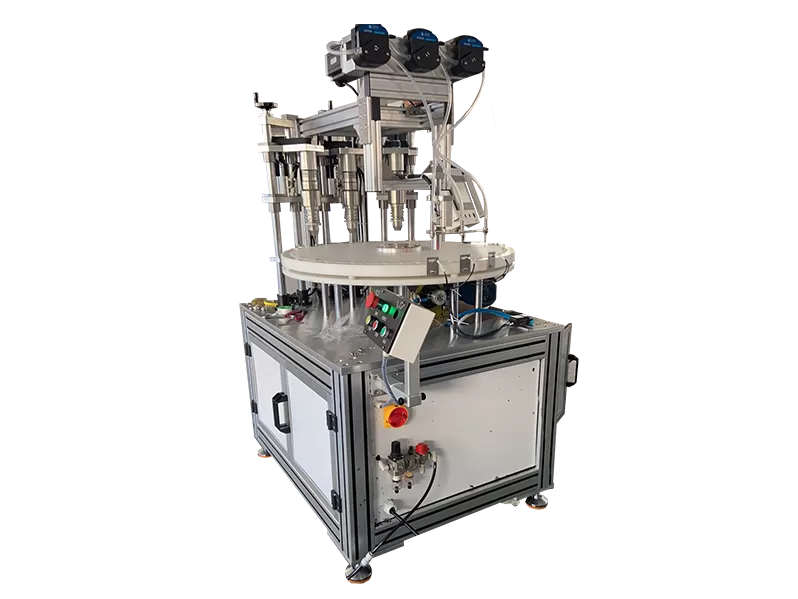

See Other Reagent Filling & Capping Machine
