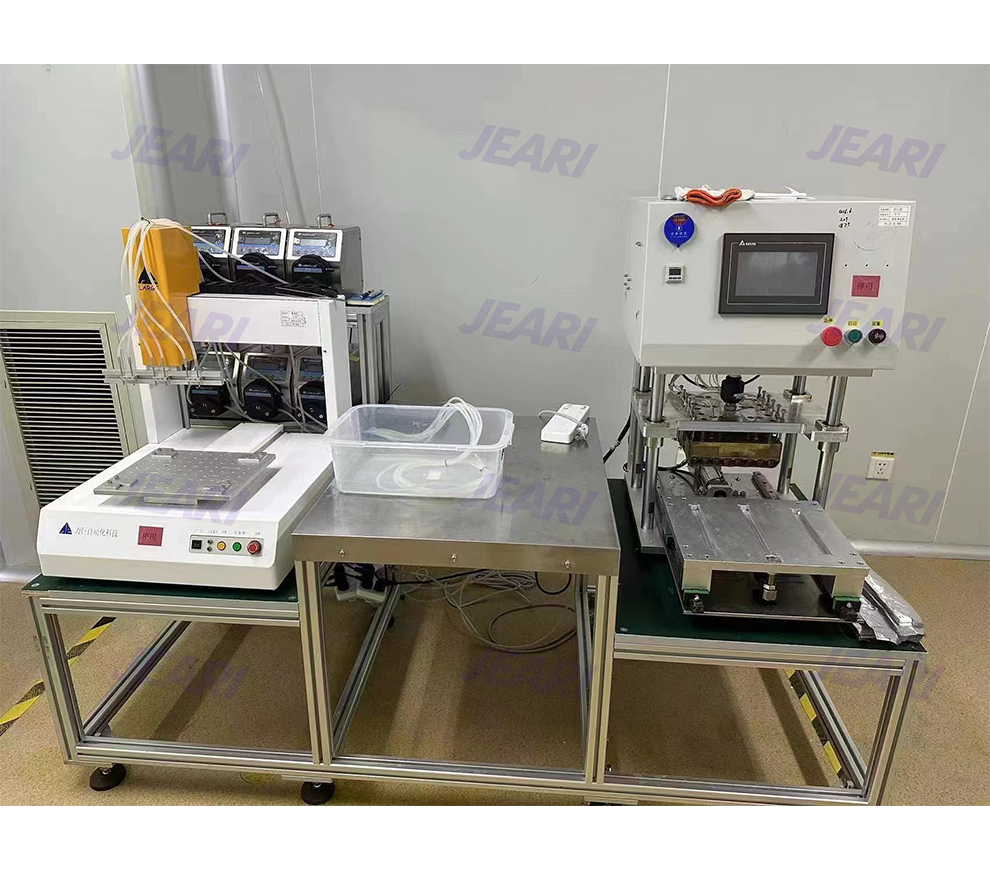

WM-701 Diagnostic Reagent Semi-Automatic Filling and Sealing Machine

Scope of Application:

Designed for diagnostic reagent filling and aluminum foil sealing production.


Optimize Your Production Precision

WM-701 Diagnostic Reagent Semi-Automatic Filling and Sealing Machine Specifications

ModelWM-701
Filling Channels6 stations
Production Efficiency8 seconds process(accoring to 48 fxtures)
Flow AccuracyWithin 5% error (The error will vary according to the viscosity of the liquid to be filled)
Filling PumpPeristalic pump
Heat Sealing Temperature0-160℃ (can be adjusted)
Filling ModeThree coordnate movement
ProgrammingTouch screen interface input
Gas Source0.6Mpa
Machine Size2000mm*900mm*1600mm(Single)
Electric Power ConsumeAbout 3.3KW
Electric PowerAC220V/50,60HZ
Machine WeightAbout 300KG




WM-701 Diagnostic Reagent Semi-Automatic Filling and Sealing Machine Workflow

Manual loading
Manual loading
Filling
Filling
Sealing
Sealing
Product discharge
Product discharge
WM-701 Diagnostic Reagent Semi-Automatic Filling and Sealing Machine Advantages

WM-701 Diagnostic Reagent Semi-Automatic Filling and Sealing Machine Advantages

• When higher production capacity is required, the system can be expanded into a full production line by adding positioning fixtures and operators, achieving throughput of 15,000–18,000 units per hour.

• The cutting tools are made from Japanese HSS high-speed alloy steel blades, providing excellent wear resistance and durability. Optional titanium coating is available based on customer requirements.

• The user interface is designed to be intuitive and easy to operate, with logical controls that minimize screen switching, providing a comfortable and efficient user experience.
