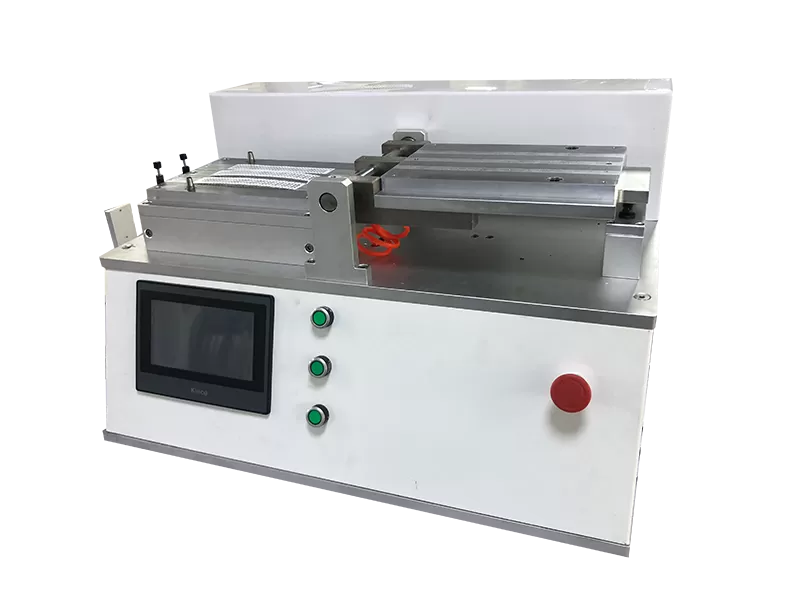

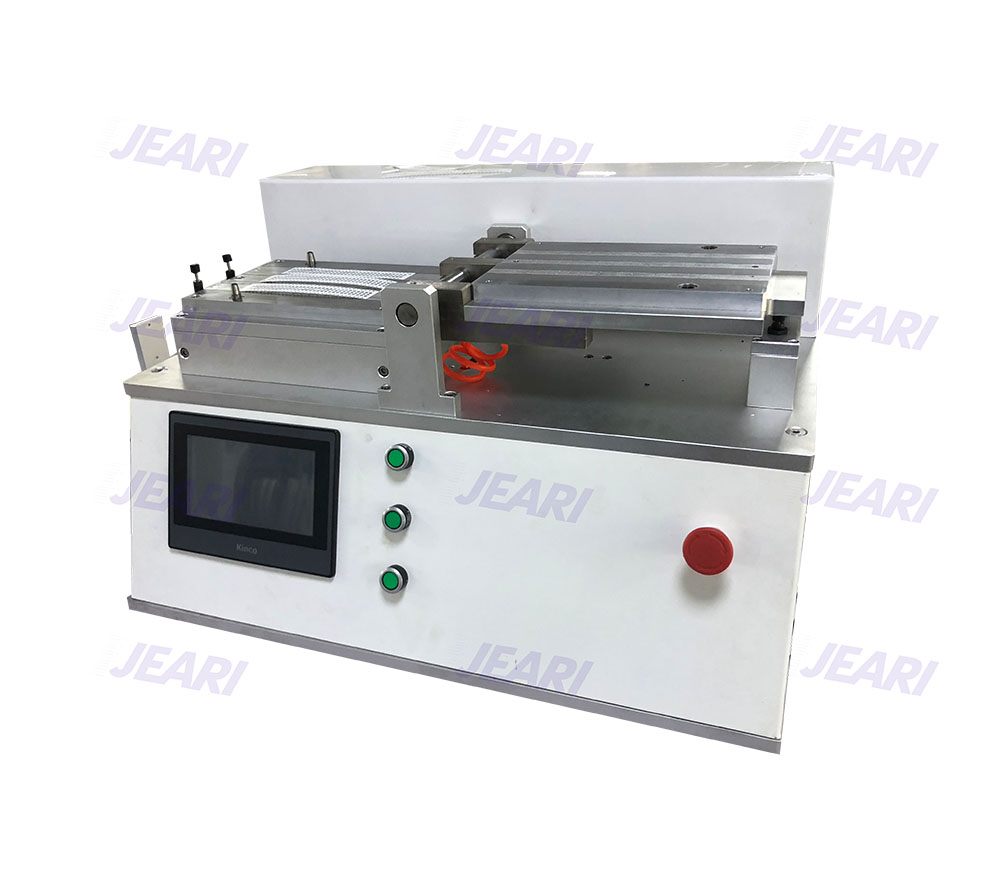

WM-531 Dry Chemical Test Paper Sheet Material Laminating Machine

Scope of Application:

Designed for the lamination process in the production of dry chemical test strip products.

Optimize Your Production Precision

WM-531 Dry Chemical Test Paper Sheet Material Laminating Machine Specifications

ModelWM-531
Laminating Channels3 channels (Can be customized according to needs)
Production EfficiencyThe efficiency may vary depending on the production process and laminating requirements of the product
Work Table Size(Base plate) Within 300mm*60mm
Raw Material Feeding WaySheet materials
Positioning MethodEdge positioning
Laminating Error±0.15mm
ProgrammingTouch screen interface input
Gas Source0.6Mpa (Clean gas source and requires a storage tank of no less than 1cbm)
Machine Size700mm*400mm*450mm
Electric Power ConsumeAbout 1.0KW
Electric PowerAC220V/50,60HZ
Machine WeightAbout 70KG



WM-531 Dry Chemical Test Paper Sheet Material Laminating Machine Workflow

Sheet feeding
Sheet feeding
Film lamination
Film lamination
Manual removal
Manual removal
WM-531 Dry Chemical Test Paper Sheet Material Laminating Machine Advantages

WM-531 Dry Chemical Test Paper Sheet Material Laminating Machine Advantages

• This equipment is designed for materials such as mesh, blood filtration membranes, and color development films used in dry chemical test strips. Positioning is performed manually, while lamination is carried out automatically—an ideal production device for manufacturers.

• The equipment supports up to six roll-material feeding channels, allowing simultaneous lamination of six different materials according to process requirements.
