Scope of Application:
Production process for pressing blood glucose substrates after multi-layer lamination.

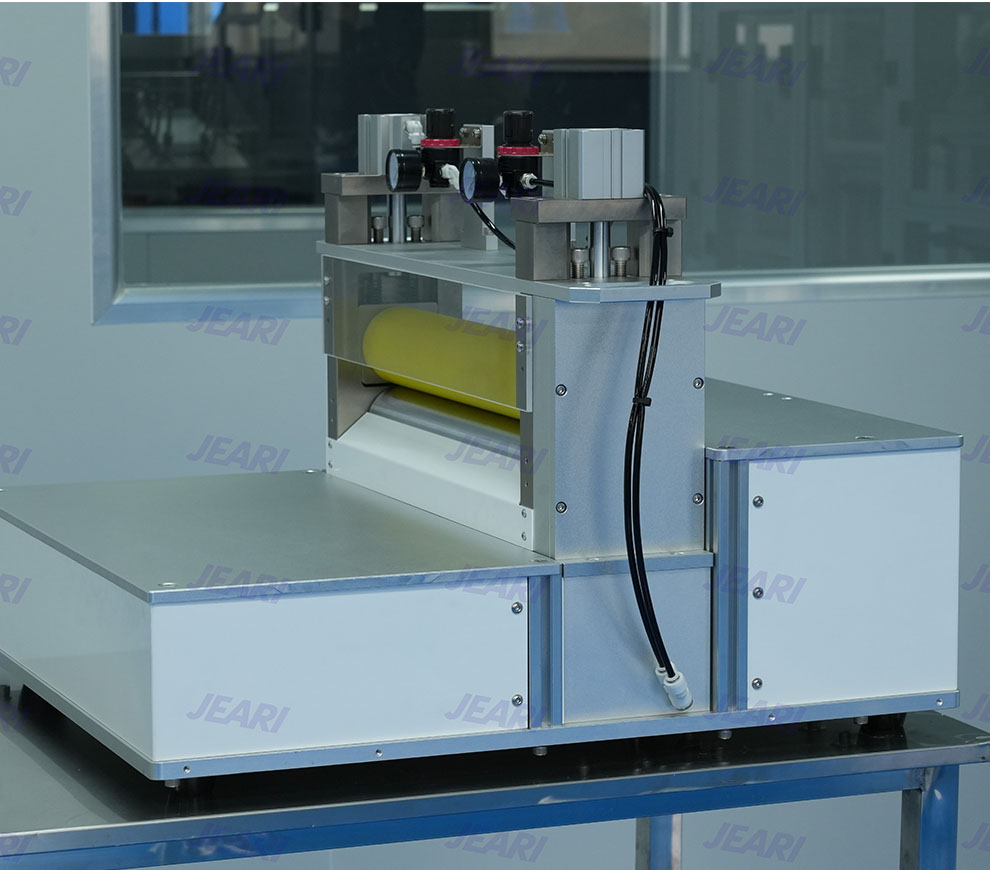

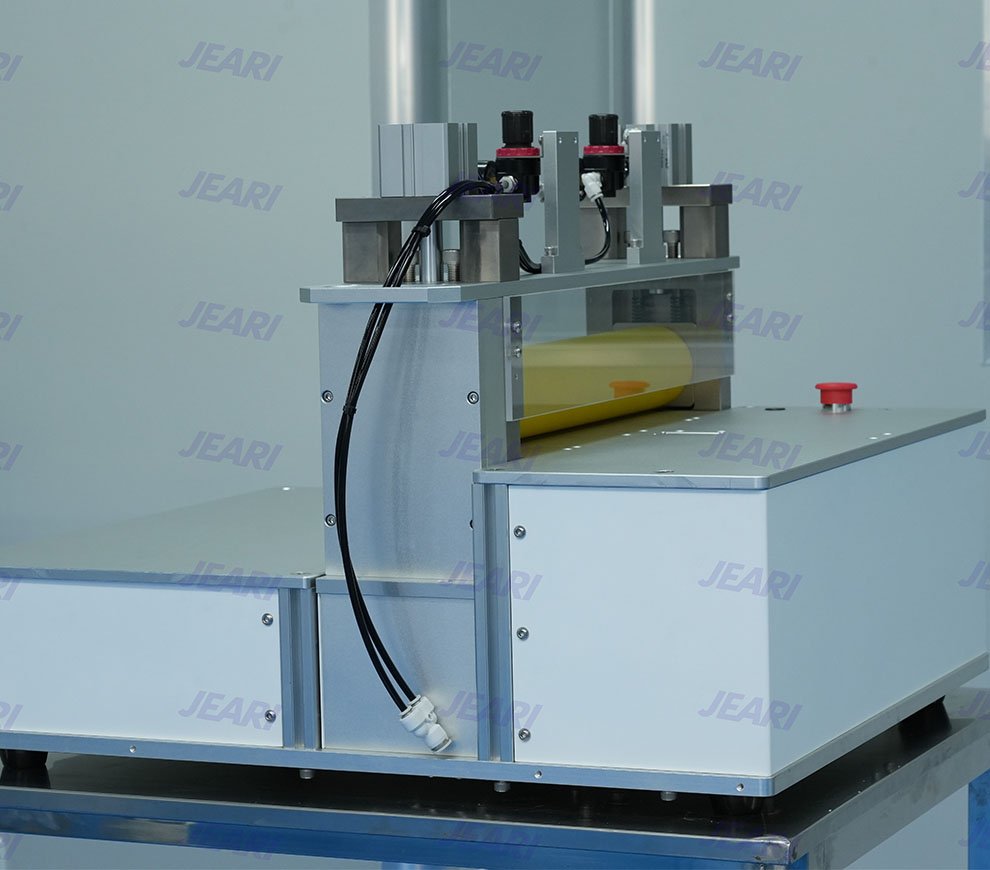

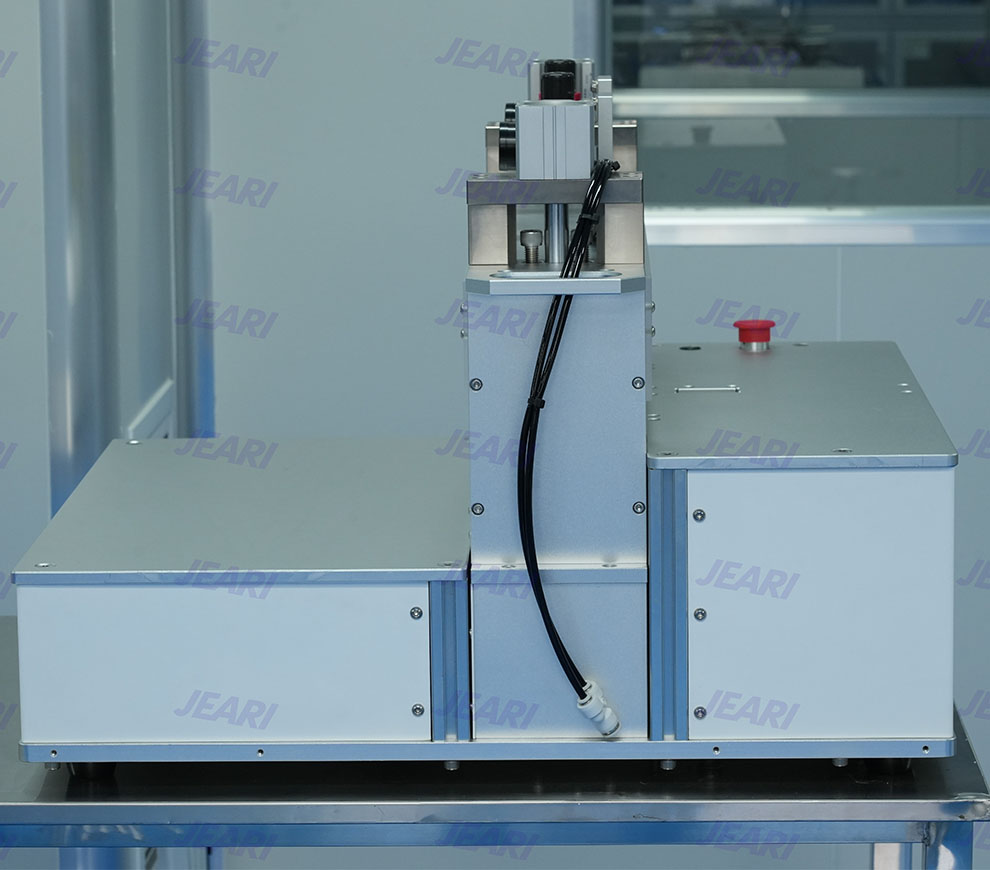

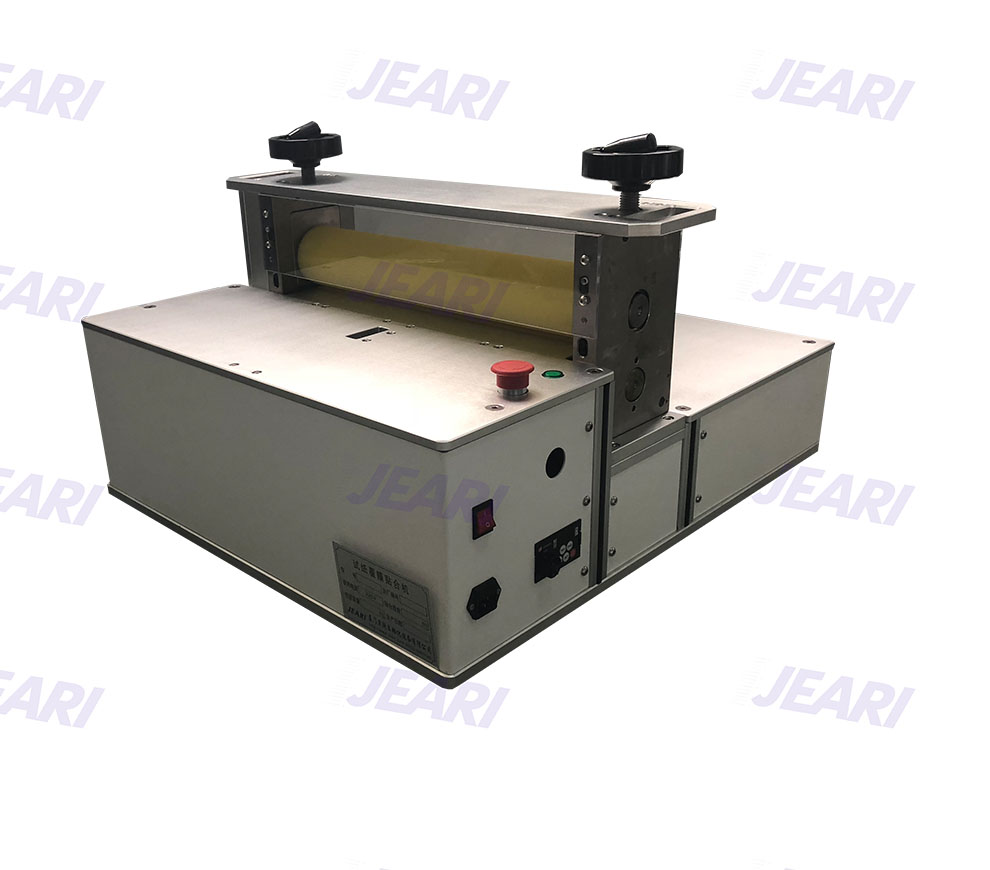

| Model | WM-203 (Compression machine that acts as a single machine or serves as a connection to a production line) |
| Worktable Route | 100mm-480mm (Can be customized according to product size) |
| Suitable Thickness | Within 0.1-2.5mm |
| Speed | Can be adjusted, Maximum 400mm/s |
| Pressure | 5-80KG (can be adjusted) |
| Machine Size | 860mm×650mm×600mm (The size and shape will be different according to customized requirements) |
| Machine Weight | About 135KG |
| Electric Power Consume | About 0.4KW |
| Electric Power | AC220V/50, 60HZ |
• The equipment automatically adjusts the downward pressure according to different product thicknesses and layer counts.
• For special requirements, custom multi-module configurations can be provided, including multi-roller shaft functions or integration as a single working station within a fully automatic laminating line.
