Scope of Application:

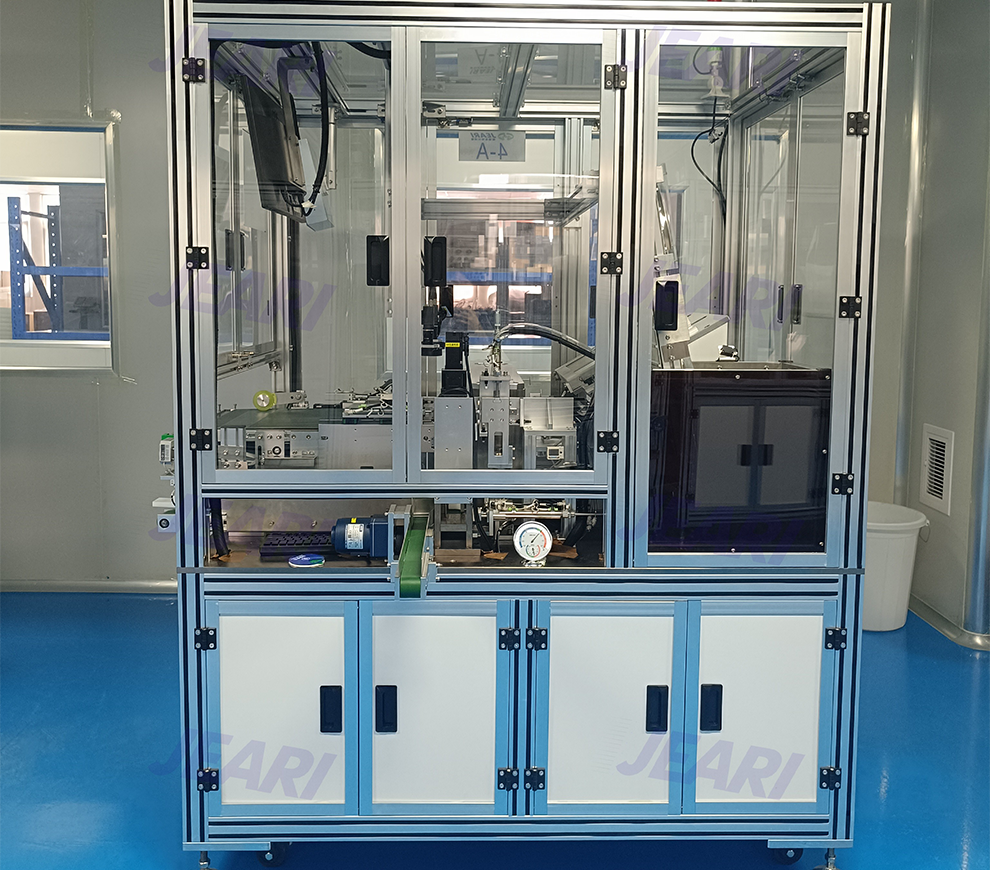

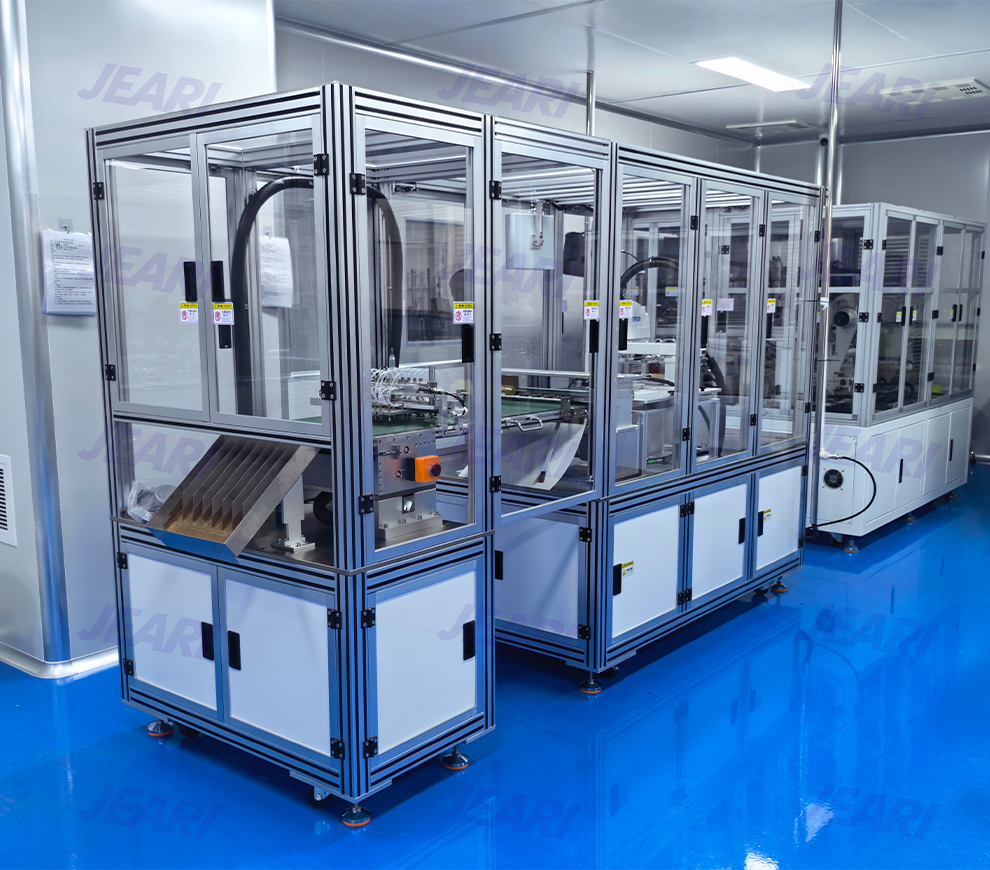

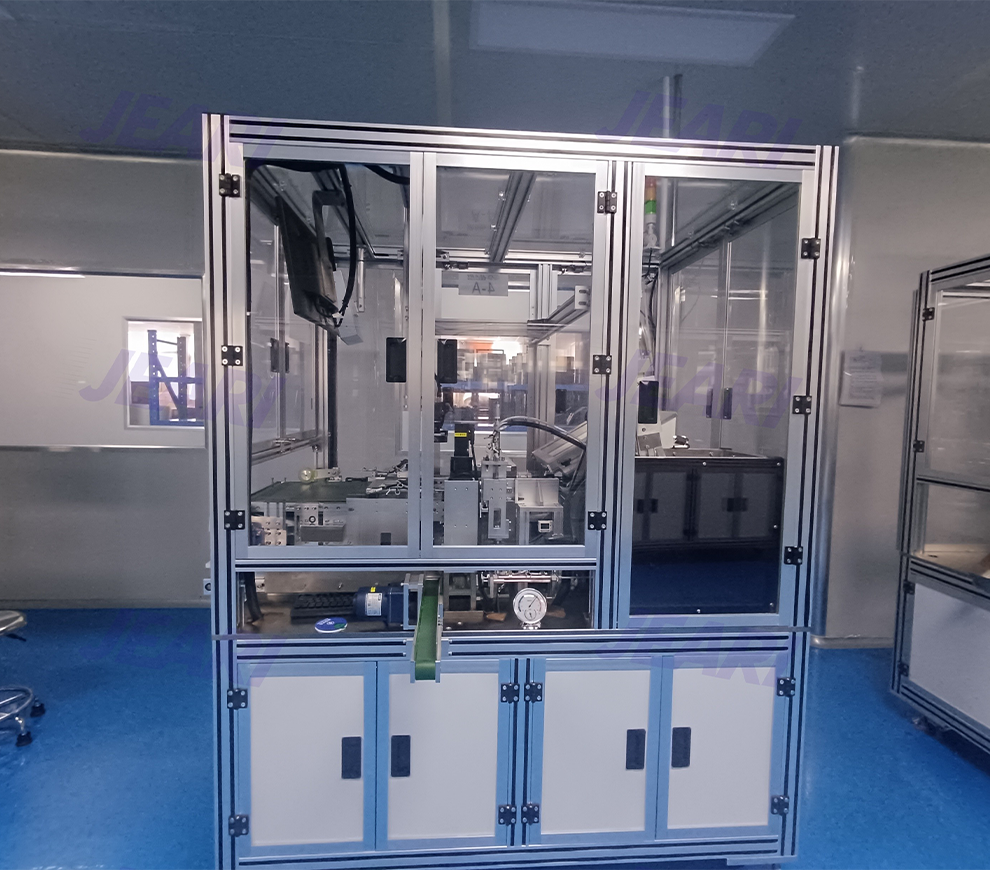

Single-strip cutting production for blood glucose, blood lipid, uric acid, cholesterol, and other types of test strips.
| Model | WM-220-F |
| Hopper Capacity | Approx. 300–450 strips |
| Rotary Cutting Precision | ±0.1mm (Slight deviation exists depending on materials) |
| Applicable Thickness | Within 1.5mm |
| Cap Storage Capacity | Approx. 500–600 pieces |
| CCD Visual Inspection | Optional add-on based on product requirements |
| Rotary Cutting Efficiency | Standard 220 RPM, adjustable speed |
| Programming Operation | Touchscreen HMI operation |
| Machine Dimensions | 1700mm×1060mm×1950mm (Dimensions vary with different machine worktables) |
| Air Supply | 0.6Mpa (Clean air source) |
| Machine Weight | Approx. 530KG |
| Power Consumption | 2.5KW |
| Power Supply | AC220V / 50, 60HZ |
Automatic feeding, fast, and stable—ideal for mass production.
Automatic Capping, fast, and stable—ideal for mass production.
Simple, intuitive interface with logical operation flow for comfortable use.
