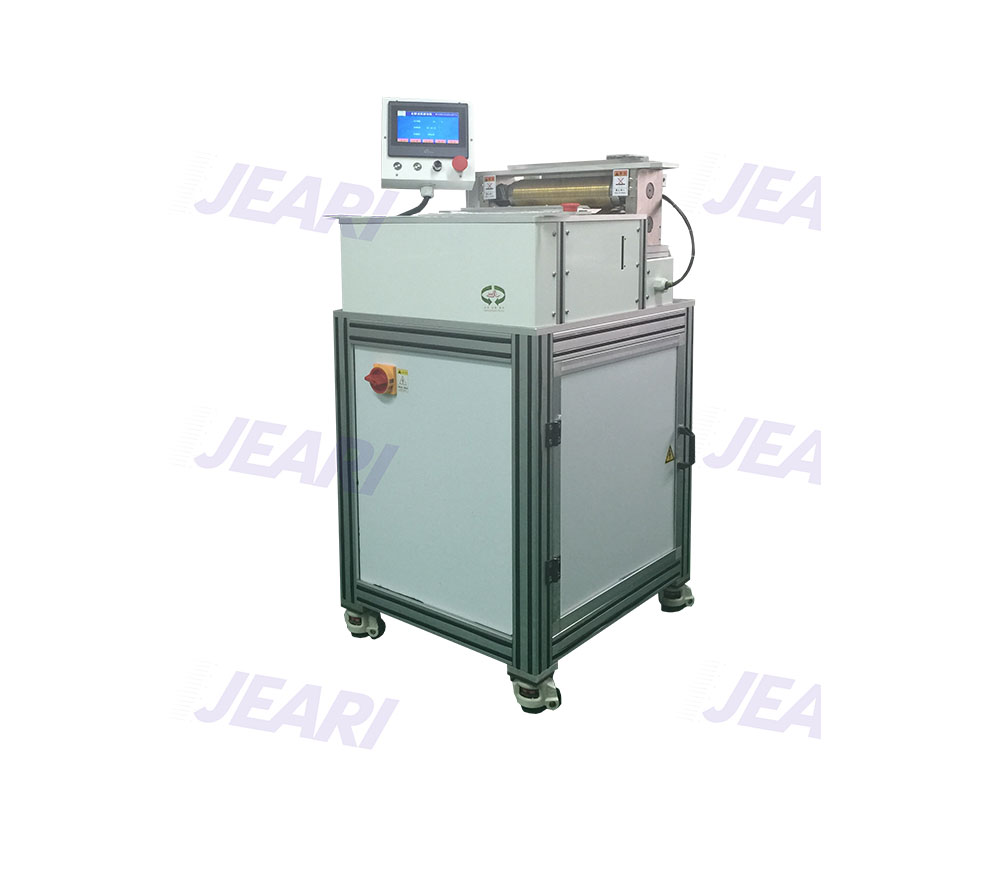

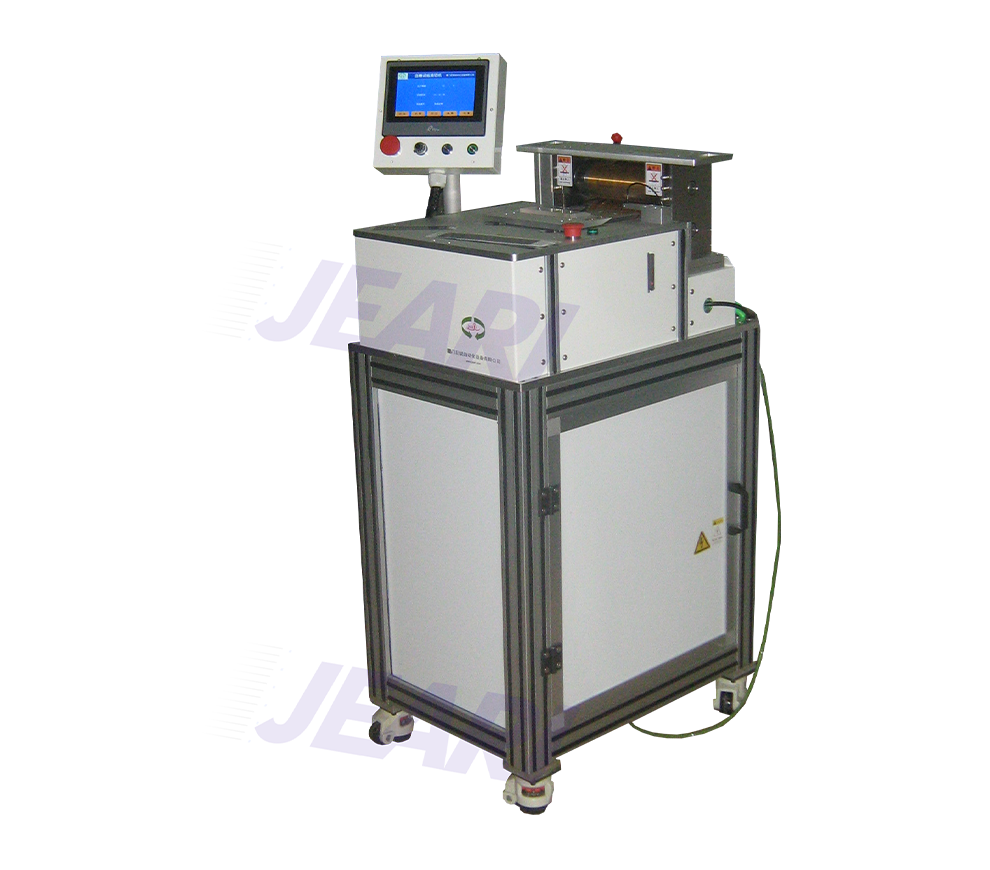

This high-precision rolling cutting machine is specifically developed to meet the requirements of small-scale diagnostic test strip production.
The equipment is optionally equipped with various positioning methods such as optical fiber sensing, hole positioning, and edge positioning, ensuring precise alignment and automatic equipment calibration. Characterized by high speed, superior efficiency, and stable quality, it serves as an ideal production equipment for manufacturing enterprises.
Different cutting tools can be replaced according to actual requirements, making them universally compatible with various electrochemical test strips and dry chemical test strips.
Scope of Application:
Single-strip cutting production for blood glucose, blood lipid, uric acid, cholesterol, and other types of test strips.
| Model | WM-220 (Single piece cutting vertical machinery) |
| Worktable Route | 200mm-460mm (Can be customized according to size of product) |
| Cutting Precision | Line error ±0.1mm (There may be slight fluctuations depending on the material) |
| Suitable Thickness | Within 2.5mm |
| Roll Cutting Alignment Way | Fiber optic scanning/artificial optics/hole positioning/edge positioning (No need alignment for urine test strips) |
| Static Electricity Removal Function | Can be added |
| Rolling Efficiency | 210rpm/min (can be adjusted) |
| Programming | Touch screen interface input |
| Machine Size | 860mm×630mm×1200mm (The size may vary depending on the worktop) |
| Gas Source | 0.6Mpa (Clean gas source) |
| Machine Weight | About 150KG |
| Electric Power Consume | 1.2KW |
| Electric Power | AC220V/50, 60HZ |
Can be upgraded with automatic feeding and automatic bottling functions.
Quick tool-change design allows tool replacement within 10 minutes, ensuring minimal downtime and stable production efficiency.
