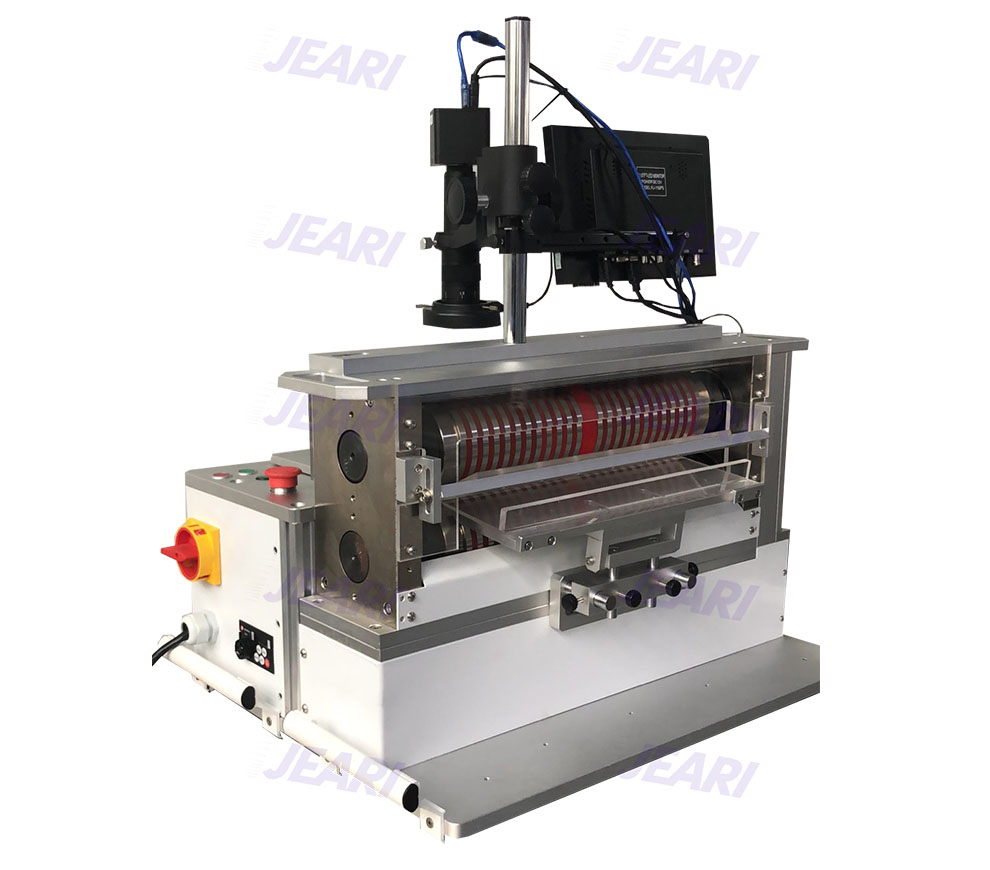

WM-232 Diagnostic Test Strip Single Piece Desktop Rolling Cutting Machine

Scope of Application:

An adjustable roll-cutting device developed for small-scale trial production and R&D stages of various types of test strip

Optimize Your Production Precision

WM-232 Diagnostic Test Strip Single Piece Desktop Rolling Cutting Machine Specifications

ModelWM-232
Worktable Route200mm-460mm (Can be customized according to size of product)
Cutting PrecisionErrors ±0.1mm (There may be slight fluctuations depending on the material)
Suitable ThicknessWithin 2.5mm
Roll Cutting Alignment WayArtificial optics/hole positioning/edge positioning
Material Receiving MethodBe customized
Cutting ToolsFlat knife/inclined knife/sharp knife/irregular knife (customized according to needs)
Rolling Efficiency210 rpm/min (can be adjusted)
ProgrammingNo need edit program
Machine Size660mm×630mm×520mm (The size may vary depending on the worktop)
Gas Source0.6Mpa (Clean gas source)
Machine WeightAbout 75KG
Electric Power Consume0.6KW
Electric PowerAC220V/50, 60HZ


WM-232 Diagnostic Test Strip Single Piece Desktop Rolling Cutting Machine Workflow

(Single-row sheet) Manual feeding
(Single-row sheet) Manual feeding
Alignment and roll cutting
Alignment and roll cutting
Automatic bottling
Automatic bottling
Product discharge
Product discharge
WM-232 Diagnostic Test Strip Single Piece Desktop Rolling Cutting Machine Advantages

WM-232 Diagnostic Test Strip Single Piece Desktop Rolling Cutting Machine Advantages

During cutting of multilayer membrane test strips, the process features non-contact operation with no pre-pressing, ensuring that the cutting blades do not damage the membrane surface. The blade edge angle is precisely designed to produce smooth cutting surfaces without causing membrane edge breakage or deformation. Optional titanium surface treatment can be applied for enhanced durability and extended tool life.
