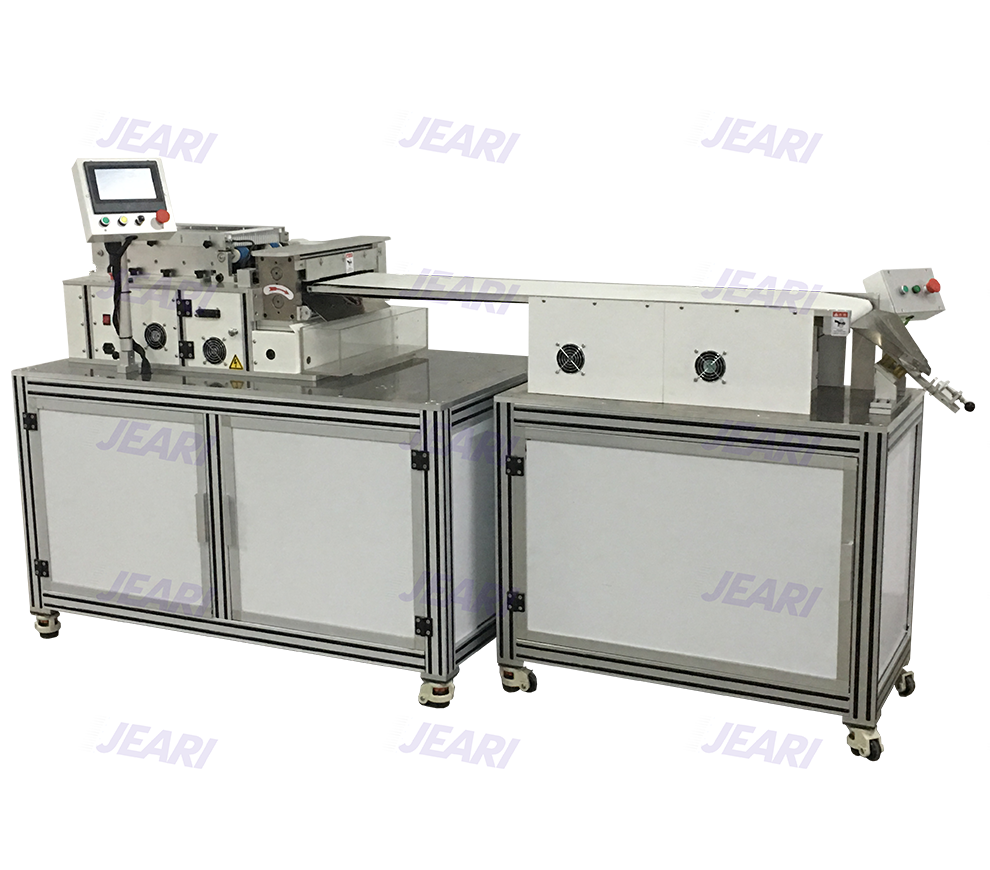

WM-220LZ-TS Automatic Single Piece Vertical Rolling and Cutting Machine for Blood Glucose Test Strips with Bottling Function

Scope of Application:

Production of blood glucose test strips


Optimize Your Production Precision

WM-220LZ-TS Automatic Single Piece Vertical Rolling and Cutting Machine for Blood Glucose Test Strips with Bottling Function Specification

ModelWM-220-LZ-TS
Worktable Route200mm-460mm (Can be customized according to size of product)
Cutting PrecisionLine error ±0.1mm (There may be slight fluctuations depending on the material)
Bottling WayManually place the bottle,and the machine automatically loads  product into the bottle
Suitable ThicknessWithin 1.2mm
Roll Cutting Alignment WayFiber optic scanning/artificial optics/hole positioning/edge positioning
Static electricity removalfunctionCan be added
Rolling Efficiency220rpm/min (can be adjusted)
ProgrammingTouch screen interface input
Machine Size1260mm×730mm×1700mm (The size may vary depending on the layout)
Gas Source0.6Mpa (Clean gas source)
Machine WeightAbout 150KG
Electric Power Consume1.3KW
Electric PowerAC220V/50, 60HZ


WM-220LZ-TS Automatic Single Piece Vertical Rolling and Cutting Machine for Blood Glucose Test Strips with Bottling Function Workflow

(Single-row sheet) Automatic feeding
(Single-row sheet) Automatic feeding
Roll cutting
Roll cutting
Product discharge
Product discharge
Automatic bottling
Automatic bottling
WM-220LZ-TS Automatic Single Piece Vertical Rolling and Cutting Machine for Blood Glucose Test Strips with Bottling Function Advantages

WM-220LZ-TS Automatic Single Piece Vertical Rolling and Cutting Machine for Blood Glucose Test Strips with Bottling Function Advantages

• The system features fully automated material loading, alignment, cutting, and product collection after cutting, ensuring efficient and stable production.

• The equipment can be optionally configured with a conveyor belt or direct bottling mechanism. Operators can remove defective products or supplement quantities directly on the conveyor, and the system will automatically complete the bottling process.

• Compatible with an optional CCD vision inspection system for real-time monitoring of cutting quality and quantity verification, ensuring product consistency and accuracy
