Scope of Application:
Production of blood glucose test strips

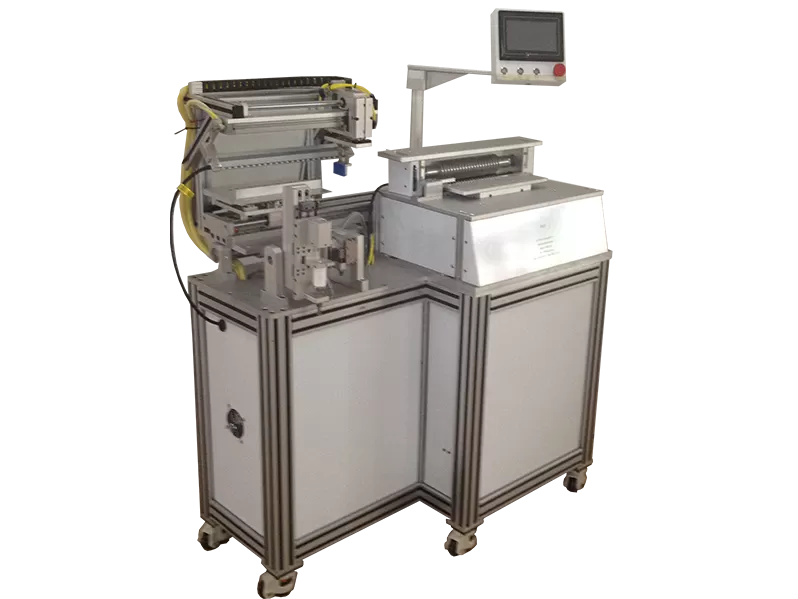

| Model | WM-220-LS |
| Cutting Precision | Robotic arm with vision system: ±0.1mm tolerance within 300mm |
| Maximum Cutting Width | 25-40mm (Can be customized according to needs) |
| Qty of Roll Channel | 4-12 channels (Customized according to needs) |
| Silo Capacity | About 300 sheets |
| CCD Inspection | Two sets of vision inspection systems cover the entire production process, with the capability to store images from each production run. |
| Impedance Detection | Customized according to needs |
| Receiving Materials Way | Fully automatic collection (labeled silo, defective product silo, finished product silo) |
| Programming | Touch screen interface input(and remote assistance) |
| Machine Size | 1200mm×900mm×1600mm (The size may vary depending on the layout) |
| Gas Source | 0.6Mpa (Clean gas source) |
| Machine Weight | About 190KG |
| Electric Power Consume | 3.2KW |
| Electric Power | AC220V/50, 60HZ |
Optional CCD vision system can be integrated for product inspection and quality monitoring.
Compatible with various electrochemical and dry-chemical test strips; cutting tools can be replaced according to specific production requirements.
Can be upgraded with an automatic feeding system to achieve higher automation levels.
