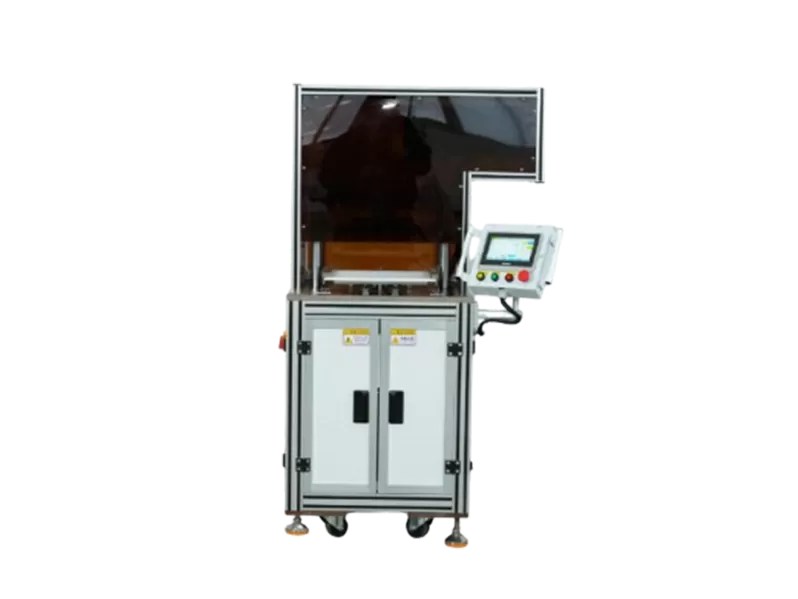

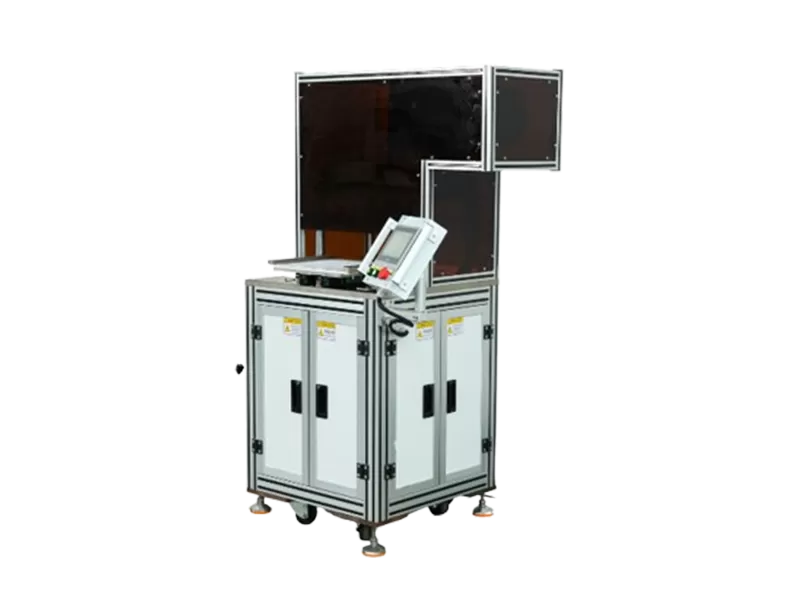

Scope of Application:
Designed for adhesive coating and punching forming processes of diagnostic test strip substrates such as dry chemistry lipid and hemoglobin substrates.
| Model | WM-201-ZS |
| Worktable Route | Within 100mm width |
| Punching Precision | Within ±0.02mm |
| Suitable Thickness | Within 1mm |
| Cutting Way | Die-cutting and shaping type |
| Adhesive Covered Channel | Within 5 channels (The minimum clearance between channels is 0.2mm) |
| Maximum Punching Pressure | Gas-liquid supercharging way, 3T-5T (Configuration can be selected) |
| Machine Size | 3760mm×800mm×1950mm (The size and shape will be different according to customized requirements) |
| Gas Source | 0.6-0.8Mpa (Clean gas source) |
| Machine Weight | About 1060KG |
| Electric Power Consume | About 1.5KW |
| Electric Power | AC220V/50, 60HZ |
• The equipment performs automatic positioning and adhesive coating, capable of forming 240 holes in a single process.
• Optional CCD visual inspection system can be added to measure adhesive and punching dimensions, detect burrs and defects, and eliminate nonconforming products.
