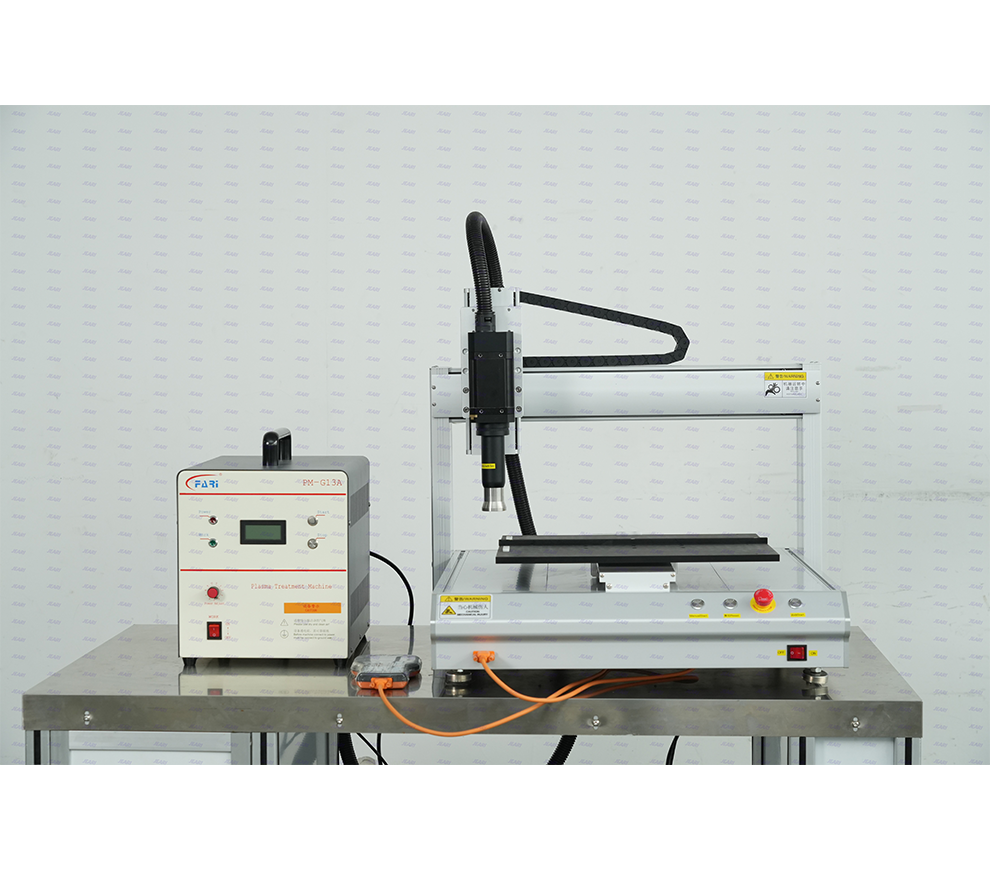

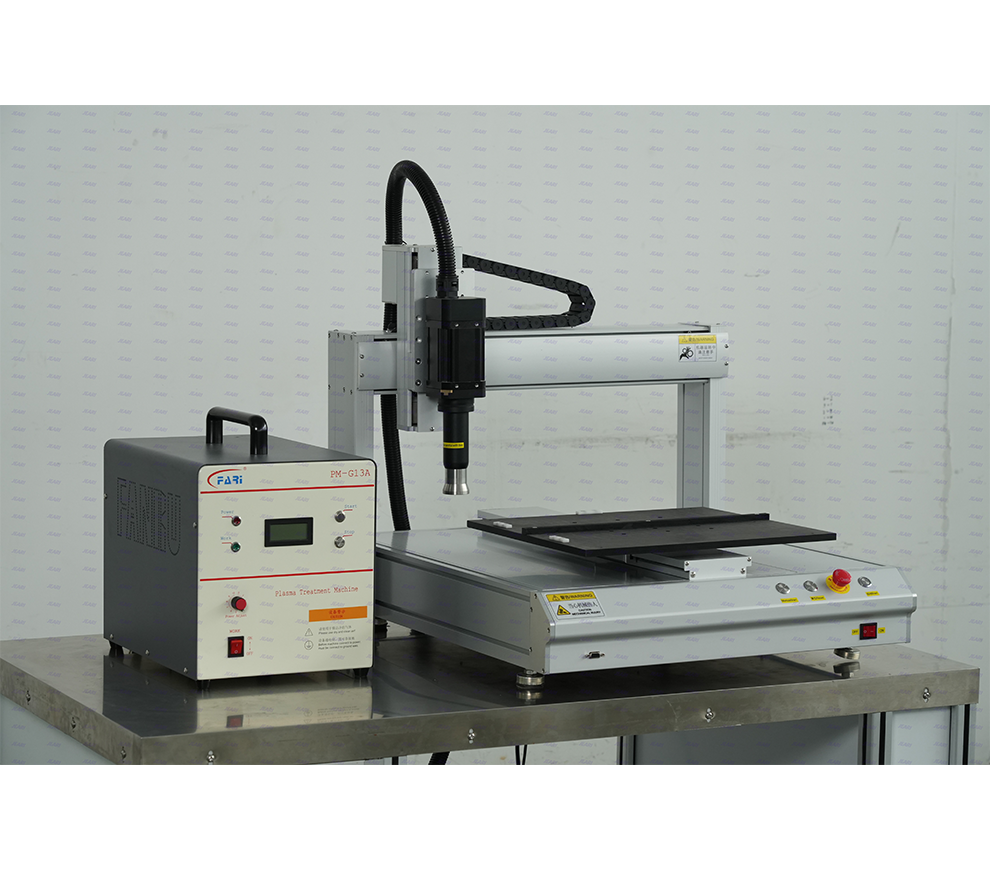

The OS-26M-DT-A Plasma Surface Treatment System is designed for blood glucose test strip production, providing pre-treatment for substrates, electrode surfaces and functional films. Suitable for PET, PE and other common materials, it effectively removes organic contaminants and improves hydrophilicity. Easy to operate, it enhances coating adhesion and electrode electron transfer efficiency to avoid reading deviations, with eco-friendly and efficient performance requiring no chemicals and only seconds per treatment.
Scope of Application:
Designed for blood glucose test strip manufacturing. Suitable for surface pretreatment of strip substrates, electrodes, and functional membranes. Compatible with common materials such as PET and PE. Effectively removes organic surface contaminants and improves surface wettability.
| Model | OS-26M-DT-A |
| Equipment Name | Low Temperature Plasma Surface Treatment Machine |
| Application | Surface modification for 3D products, improve hydrophilicity, adhesion & printing compatibility |
| Power Supply | AC220V (±10V) |
| Power | 1000W |
| Treatment Width | 55–60mm |
| Working Frequency | 18–25kHz |
| Air Pressure | 3–3.5kgf/cm² |
| Dimensions | 400(L)×280(W)×380(H)mm |
| Weight | 35kg |
| Operating Environment | Temp: -10℃~+50℃; Humidity:<93%RH (non-condensing) |
| Control Mode | Manual / external relay on-off control |
| Safety | Reliable grounding required; under-pressure protection; forbidden in flammable & explosive environment |
| Warranty | 1-year limited warranty (excluding man-made damage, natural disaster, unauthorized disassembly) |
• Easy operation: Simple setup and user-friendly operation.
• Improved test accuracy: Enhances substrate hydrophilicity and coating adhesion, preventing uneven reagent spreading and signal deviation, while ensuring efficient electron transfer on electrodes.
• Environmentally friendly and efficient: No chemical reagents required, no wastewater or exhaust emissions; single treatment cycle takes only a few seconds.
