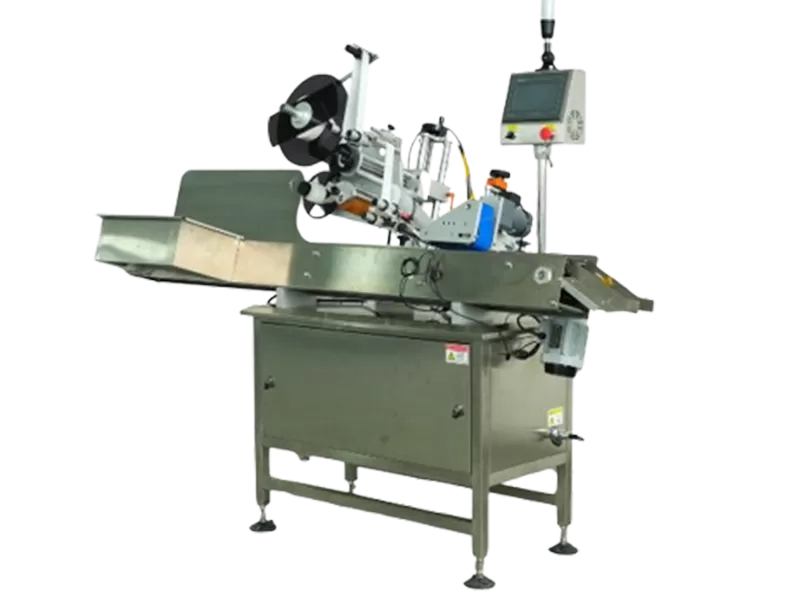

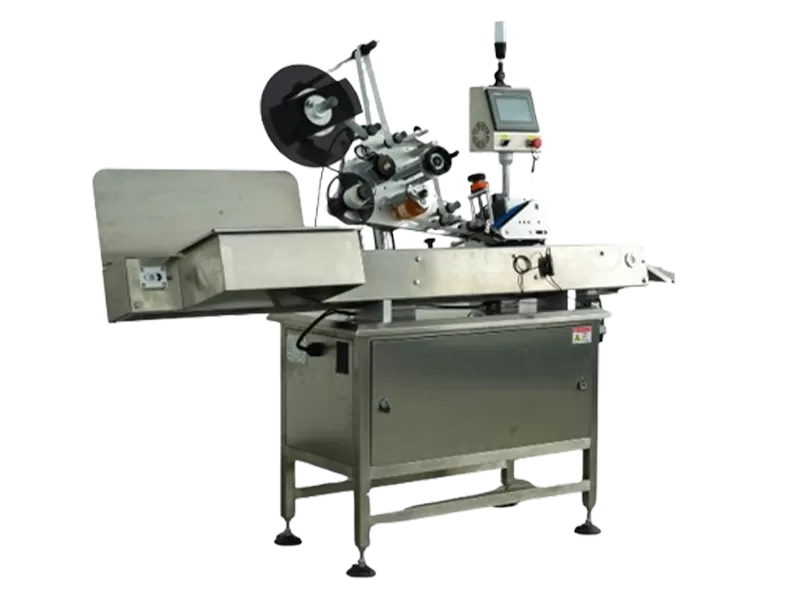

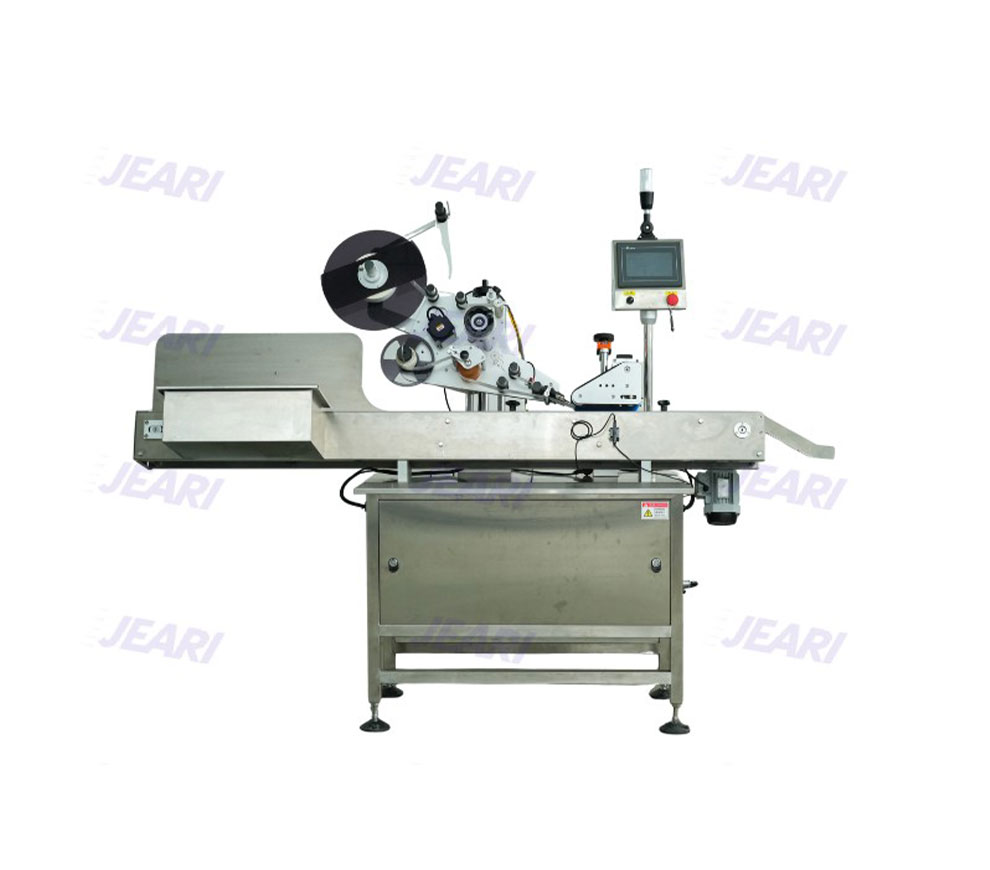

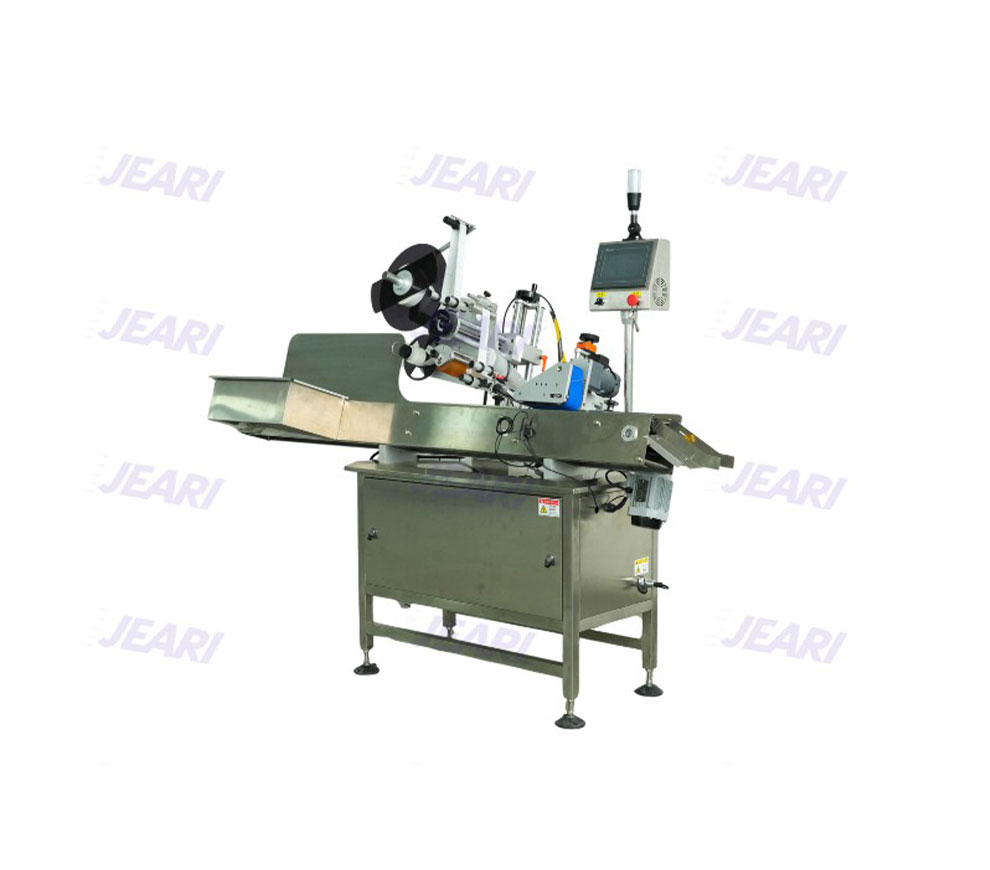

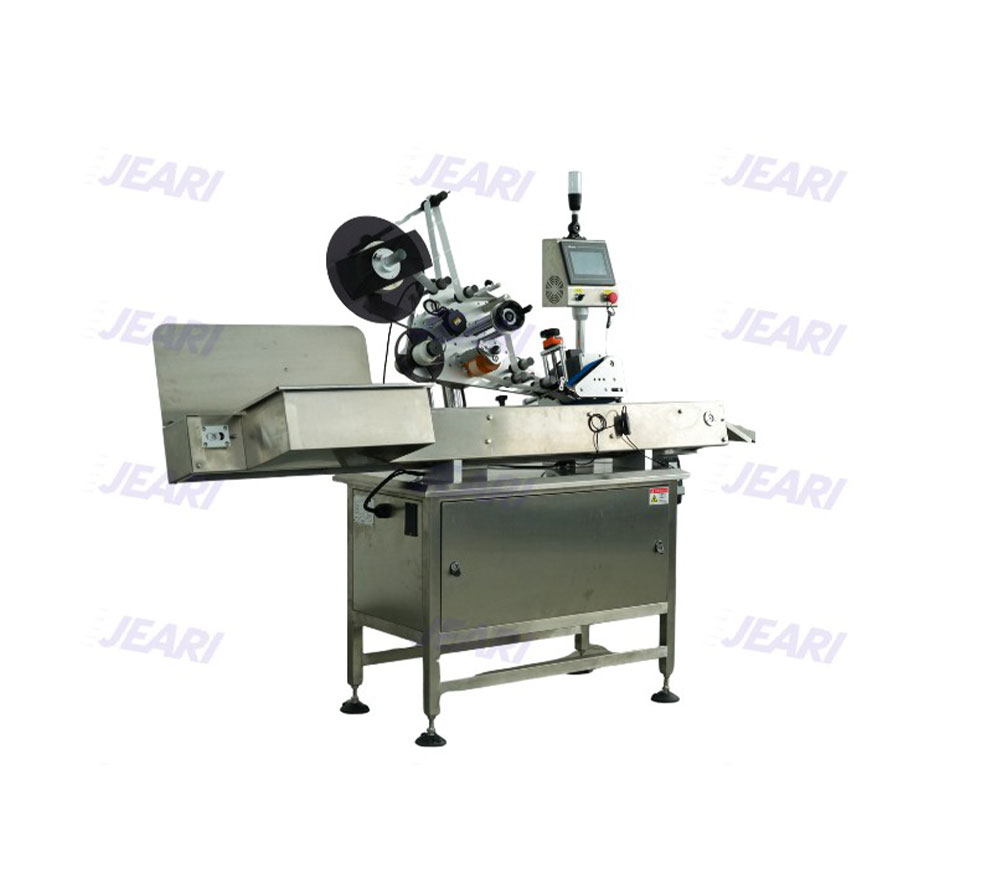

OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine
OS-25M-VT-A Semi-automatic Labeling Machine

OS-25M-VT-A Semi-automatic Labeling Machine

OS-25M-VT-A Semi-automatic Labeling Machine, designed for POCT bottles, with ±1mm accuracy, 20-80 pcs/min speed, easy operation and high cost performance for SMEs.



Scope of Application:

Designed for the packaging stage of POCT bottled products. Compatible with cylindrical plastic bottles with an outer diameter of Φ40–120 mm and a height of 10–200 mm.

Optimize Your Production Precision

OS-25M-VT-A Semi-automatic Labeling Machine Specification

Parameter CategoryEnglish Specification Value
ModelOS-25M-VT-A S
Labeling Speed40-150 bottles/minute (adjustable based on product and label length)
Applicable Bottle DimensionsOuter diameter: 15-100mm, Height: 20-150mm
Applicable Label SpecificationsLabel length: 23-200mm, Label height: 15-120mm
Feeding ChannelSingle-channel continuous conveying (supports bidirectional conveying: Left→Right / Right→Left)
Magazine CapacityCompatible with standard label rolls: Diameter ≤ 300mm, Max width 90mm, Core inner diameter 75mm
Equipment Dimensions2000mm × 850mm × 1350mm
Power ConsumptionTotal power 1.5KW, Voltage 220V 50-60HZ
Weight250KG
Operating Temperature5–35°C
Operating Humidity30%–80% RH
Applicable EnvironmentWork environment free of flammable, explosive gases and dust


OS-25M-VT-A Semi-automatic Labeling Machine Workflow

(POCT semi-finished products after filling) Manual loading
(POCT semi-finished products after filling) Manual loading
Labeling
Labeling
Finished product output
Finished product output
OS-25M-VT-A Semi-automatic Labeling Machine Advantages

OS-25M-VT-A Semi-automatic Labeling Machine Advantages

• Accurate and compliant labeling: PLC-coordinated control achieves labeling accuracy of ±1 mm, effectively reducing errors caused by manual operation.

• Simple and flexible operation: Intuitive control panel allows quick parameter adjustment; operators can start with minimal training.

• High efficiency and cost-effective: Labeling speed of 20–80 units/min, improving efficiency by 3–5 times compared to manual labeling. Compact footprint and low initial investment, ideal for cost-conscious small and medium-sized manufacturers.

Contact JEARI Experts for your Customized IVD Manufacturing Automation Solutions
